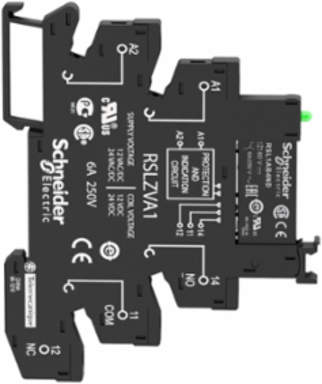

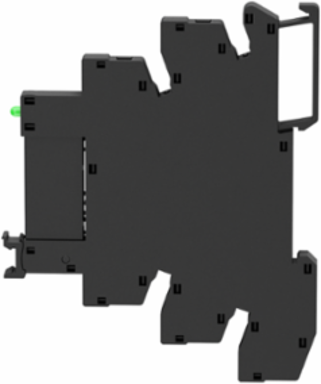

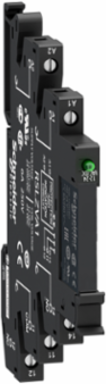

Schneider Electric RSL1PVPU Harmony Slim Interface Relay, 1 C/O, 6A, 230V AC/DC, 6.2mm Wide
- MPN: RSL1PVPU
- PPN: SCH-RSL1PVPU
CAD
$22.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 60V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 230 V AC/DC
- Shape Of Pin
- flat (PCB type)
- Status Led
- with
- Contacts Type And Composition
- 1 C/O
- Device Short Name
- RSL
Range Of ProductHarmony Electromechanical Relays
Product Or Component Typepre-assembled plug-in relay with socket
Series Nameinterface relay
Contact Operationstandard
[Ithe] Conventional Enclosed Thermal Current6 A -40-55 °C
Complementary
- Maximum Switching Capacity
- 1500 VA || 150 W
- Height
- 78.6 mm
- Tightening Torque
- < 0.5 N.m M2.5
- Protection Category
- RT III
- Mounting Support
- 35 mm symmetrical DIN rail
- Contacts Material
- silver alloy (AgSnO2)
- Electrical Durability
- 60000 cycles resistive, 6 A 250 V, AC-1
- Contact Terminal Arrangement
- separate
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC
- Control Type
- without push-button
- Device Presentation
- complete product
- Minimum Switching Capacity
- 120 mW
- [Ie] Rated Operational Current
- 6 A 1 C/O AC-1/DC-1)IEC/UL
- [Ui] Rated Insulation Voltage
- 250 V IEC || 277 V cUL
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 5 ms reset || 12 ms
- Load Current
- 6 A 250 V AC 0.5 mm mounting distance
- Depth
- 95 mm
Safety Reliability DataB10d = 60000
Terminals Description Iso N°1(11-12-14)OC || (A1-A2)CO
Operating Rate<= 72000 cycles/hour no-load || <= 360 cycles/hour under load
Test Levelslevel A group mounting
Fixing Modeplastic compression spring
Reset Time20 ms
MarkingCE
Net Weight0.029 kg
Maximum Switching Voltage277 V
Average Resistance20500 Ohm DC 23 °C +/- 10 %
Connections - Terminalsscrew connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw connectors, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) solid without cable end
Average Coil Consumption0.17 W, DC
Sale Per Indivisible Quantity10
Minimum Switching Current100 mA
Operating Positionany position
Width6.2 mm
Drop-Out Voltage Threshold>= 0.05 Uc
Minimum Switching Voltage12 V
Environment
- Product Certifications
- GOST || CSA || UL
- Ambient Air Temperature For Operation
- -40-70 °C
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27 || 5 gn 11 ms) not operating IEC 60068-2-27
- Ip Degree Of Protection
- IP40 IEC 60529
- Input Voltage
- 230 V AC/DC 184...264.5 V)
StandardsIEC 61810-1 || UL 508 || CSA C22.2 No 14
Vibration Resistance10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-6 || 5 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
Dielectric Strength1000 V AC between contacts || 4000 V AC between coil and contact
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Toxic Free
- Yes
- Mercury Free
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1405004EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption InformationYes
Environmental DisclosureENVPEP1405004EN
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationX
Phenolic Free SolutionYes
