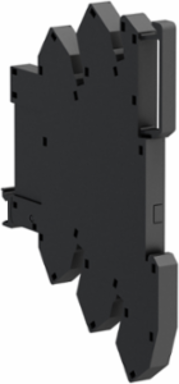

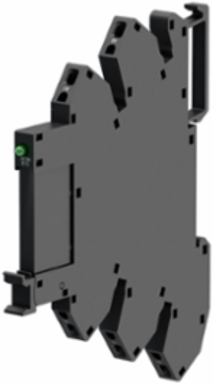

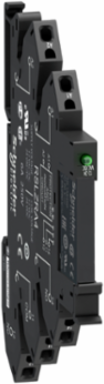

Schneider Electric RSL1PREU Harmony Slim Interface Relay, 6A 1CO, 48V AC/DC, 6mm Width
- MPN: RSL1PREU
- PPN: SCH-RSL1PREU
CAD
$22.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony RSL slim, pre-assembled plug-in relay and socket features a 48VAC/DC coil control voltage. It includes one changeover contact (SPDT-single pole, double throw) with a current rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. One of the slimmest interface relay on the market, with 6mm width, it can be installed nearly anywhere. It is compatible with high breaking capacity or low-level current application requirements. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Spain, France
Depth101 mm
Complementary Attributes
- Maximum Switching Capacity
- 1500 VA, 150 W
- Line Rated Current
- 6 A
- Minimum Switching Capacity
- 120 mW
- Minimum Switching Voltage
- 12 V
Control Circuit TypeAC/DC
Maximum Switching Voltage277 V
Minimum Switching Current100 mA
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1000 V AC between contacts, 4000 V AC between coil and contact
- Operating Time
- 5 ms reset, 12 ms
- Vibration Resistance
- 10 gn +/- 1 mm 10-150 Hz)10 cycles not operating IEC 60068-2-6, 5 gn +/- 1 mm 10-150 Hz)10 cycles in operation IEC 60068-2-6
- Certificate Agency
- GOST, CSA, UL
- [Ui] Rated Insulation Voltage
- 250 V IEC, 277 V cUL
- Terminals Description Iso N°1
- (11-12-14)OC, (A1-A2)CO, (11-12-14)OC, (A1-A2)CO
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.06702982359148825, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.3 kg CO2 eq., 0.29378451711073206
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Coil Consumption
- 0.17 W, DC
- Clamping Force
- 10-40 N
- Contact Operation
- standard
- Contacts Material
- silver alloy (AgSnO2)
- Control Type
- without lockable test button
- Fixing Mode
- plastic compression spring
- Marking
- CE
- Mounting Support
- 35 mm symmetrical DIN rail
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protection Category
- RT III
- Relay Type
- slim interface relay
- Safety Reliability Data
- B10d = 60000
- Series Name
- RSL series
- Software Version
- v6.3.0.1-4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 3 kg CO2 eq.
- Pep Code
- ENVPEP2506033EN
- Pep Verification Date
- 2025-06-30
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 78.6 mm
- [Ie] Rated Operational Current
- 6 A 1 C/O AC-1/DC-1)IEC/UL
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load<= 72000 cycles/hour no-load, <= 72000 cycles/hour no-load, <= 360 cycles/hour under load, <= 360 cycles/hour under load
Shock Resistance10 gn 11 ms) in operation IEC 60068-2-27, 5 gn 11 ms) not operating IEC 60068-2-27
Connections Terminalsspring terminals
[Uc] Control Circuit Voltage48 V AC/DC, 48 V
Connections - Terminalsspring terminals, spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) flexible with cable end, spring terminals, 1 x 0.2...1 x 1.5 mm² AWG 24...AWG 16) solid without cable end
Carbon Footprint Of The Distribution Phase [A4]0.016233115683300086, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]3 kg CO2 eq., 3.0779869216419082
Local Publishable Date2026-05-29
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506033EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2353
China Rohs In ScopeYes
Phenolic Free SolutionYes
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Average Resistance10600 Ohm DC 23 °C +/- 10 %
Compatibility CodeRSL
Contact Terminal Arrangementseparate
Contacts Type And Composition1 C/O
Electrical Durability60000 cycles resistive, 6 A 250 V, AC-1
Load Current6 A 250 V AC 0.5 mm mounting distance
Mechanical Durability10000000 cycles
Operating Positionany position
Product Or Component Typepre-assembled plug-in relay with socket
Range Of ProductHarmony Electromechanical Relays
ReturnabilityNo
Sale Per Indivisible Quantity10
Shape Of Pinflat (PCB type)
Status Ledwith
Test Levelslevel A group mounting
Input Voltage 9 Input Voltage48 V
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionRSL Interface plug-in Relay has large choice of number of contacts for high rated current use.It helps to reduce the size of enclosures and increases machine reliability and you can mount nearly everywhere. One of the slimiest interface relay on the market with 6mm width and it can be installed nearly anywhere and this product is assembled with socket. Easy installation and withdrawal the relay from its socket. It is compatible with high breaking capacity or low-level current application requirements.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential, In %41
Width Nominal6.2 mm
[Ithe] Conventional Enclosed Thermal Current6 A -40-55 °C
Drop-out Voltage Threshold>= 0.05 Uc>= 0.05 Uc
Package Weight(Lbs)31 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Carbon Footprint
- 3.4550343780274284
- Circularity Profile
- ENVEOLI2506033EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506033EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Toxic FreeYes
Ambient Air Temperature For Operation-40-55 °C-40-55 °C
Environmental DisclosureENVPEP2506033EN
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-30
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- pre-assembled plug-in relay with socket
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- 48 V AC/DC 43.2...57.6 V)
Overview Attributes
- Device Presentation
- complete product
