Schneider Electric HMIS85W Harmony SCU 5.7 Inch Small Touchscreen Display HMI, 320 x 240 Resolution
- MPN: HMIS85W
- PPN: SCH-HMIS85W
CAD
$757.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

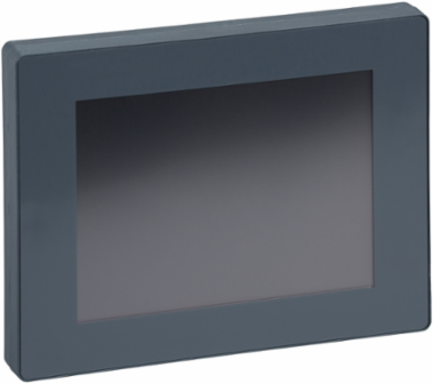

This product is part of the Harmony SCU range, an offer of HMI controllers from 3.5 to 5.7inch colour screens. The HMI small touchscreen features 5.7inch QVGA backlit LED colour TFT LCD display and supports 320 x 240 pixels resolution. It supports Taiwanese (traditional Chinese), Japanese (ANK, Kanji), Korean, ASCII and Chinese (simplified Chinese) character fonts. It supports 65536 colours with 50000 hours of backlight lifespan. The analogue touch panel with 16 levels brightness provides four viewing angles 60° left, 60° right, 40° top, 60° bottom in horizontal x vertical. Its dimensions are 163mm (width) x 129.4mm (depth) and weighs 0.405kg. The integrated design of Harmony SCU delivers maximum functionality while keeping installation easy. Designed for small machines and simple processes control, its state-of-the-art display provides clear readability. The Harmony SCU (formerly known as Magelis SCU) is designed to operate with EcoStruxure™ Machine Expert. It offers functionality for control of small machines and simple processes, while saving up to 30% in installation and ownership costs.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, United States |
|---|
| Depth | 129.4 mm |
|---|
Physical Attributes
| Display Size | 5.7 inch |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB, SC |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Character Font | Taiwanese (traditional Chinese), Japanese (ANK, Kanji), Korean, ASCII, Chinese (simplified Chinese) |
| Certificate Agency | UKCA, UKEX |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.0751729323 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 35 kg CO2 eq., 35.2906015038 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | Yes |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 4 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Display Type | backlit LED colour TFT LCD |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Range Of Product | Harmony SCU |
| Software Version | EIME v5.8.1 |
| Total Lifecycle Carbon Footprint | 143 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2016-11 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27 |
| Width Nominal | 163 mm |
| F-gas Usage Performance | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician |
|---|---|
| Market Segmentation | Commercial, Industrial |
| View Angle Horiz X Vert | 60° left, 60° right40° top, 60° bottom |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0322556391, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.002107218, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 108 kg CO2 eq., 107.7958095238 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | HMI - Graphical display unit |
| Traceability | Yes |
| Average Life Duration | 7 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2101003EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Brightness | 16 levels via touch panel |
| Pixel Resolution | 320 x 240 pixels QVGA |
| Product Or Component Type | small touchscreen display HMI |
| Returnability | No |
| Sustainable Packaging | No |
| Touch Panel | analogue |
| Pep Code | ENVPEP2101003EN |
| Pep Verification Date | 2021-01-01 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 140.16 |
| Energy Model - Installation [A5] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27 |
| F-gas Free | Only air and vacuum used for insulation / breaking, no F-gas including SF6 |
| Halogen-free Status | Product contains halogen above thresholds |
| Package Weight(Lbs) | 689.000 g |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 143.195946817 |
| Environmental Disclosure | ENVPEP2101003EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2101003EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Halogene Performance | Product contains halogen above thresholds |
|---|---|
| China Rohs Regulation | X |
| Silicon Free | No |
| Circularity Profile | ENVEOLI2101003EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2021-01-01 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | small touchscreen display HMI |
|---|
| Range Of Product | Harmony SCU |
|---|
ETIM
| ETIM 8 | EC001412 |
|---|
| ETIM 9 | EC001412 |
|---|
