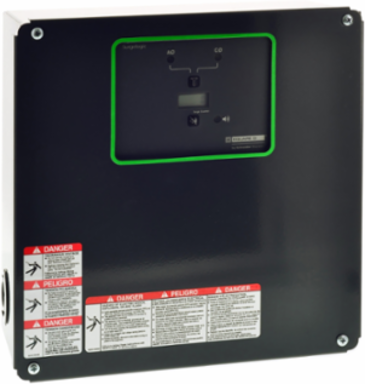

Square D EMA92 Surge protective device, Surgelogic, EMA, 200kA, 600V delta, 3 phase, 3 wire, SPD type 1, UL 1283, NEMA 1

MPN: EMA92
UPC: 047569000522
PPN: SCH-EMA92

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Surgelogic™ Type EMA systems are externally mounted surge protection devices. Designed for external installation, the device enables convenient access for retrofitting and maintenance without requiring modifications to internal panel configurations. External mounting limits fault impact on internal equipment, enhancing reliability. With a surge current rating of 200,000 Amps, Indoor rated and includes Surge counter. Rated for 600VAC three phase systems. This product is UL and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Depth	135 mm

Important Information Attributes

Noise Level	-42 dB, -42 dB
Certificate Agency	UL 1449:ed. 5, CSA C22.2 No 269.2, UL 96A
Carbon Footprint Of The End-of-life Phase [C1 To C4]	13 kg CO2 eq., 12.985389547809287
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	80 kg CO2 eq., 80.49899364728077
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	4
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Device Short Name	EMA
Energy Efficiency Optimized	False
Local Signalling	status LED green per phase normal operationstatus LED red per phase fault
Phase	3 phase
Product Or Component Type	surge protection device
Returnability	Yes
Sustainable Packaging	No
Wiring Configuration	3-wire
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Protect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	1752
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	290 mm
[Iimp] Impulse Current	20 kA
[Ue] Rated Operational Voltage	600 V delta AC
Short-circuit Protection	200 kA
Package Weight(Lbs)	7.215 kg
Warranty (In Months)	18

Provided Equipment	surge counter, dry contacts
Carbon Footprint Of The Distribution Phase [A4]	0.9244124996005056, 0.9 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.008749180715555228, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	845 kg CO2 eq., 845.4059017557078
Local Publishable Date	2025-11-13
Stocking Flag	N
Weee Scope	In
Scope Perimeter	Outside of Europe
End Of Life Doc Ref	ENVEOLI2508025EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2531
China Rohs In Scope	No
Without Single Use Plastic	Yes
Product Kit Identifier	N
Enclosure Material	painted sheet steel
Frequency Measurement Range	47-63 Hz
Nominal Discharge Current	20 kA
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Surgelogic
Software Version	v6.2.5-6
Total Lifecycle Carbon Footprint	940 kg CO2 eq.
Pep Code	ENVPEP2508025EN
Pep Verification Date	2025-08-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	69
Width Nominal	208 mm
[Uc] Maximum Continuous Operating Voltage	840 V
Connections - Terminals	lugs terminal 10 AWG...2 AWG
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536308000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage	-40-65 °C, -40-65 °C
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	939.8234466311139
Environmental Disclosure	ENVPEP2508025EN
Nema Degree Of Protection	NEMA 1
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP2508025EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Operation	-20-65 °C, -20-65 °C
Take Back	No
Mercury Free	Yes
Circularity Profile	ENVEOLI2508025EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...12000 ft
Packaging Without Single Use Plastic	Yes
Relative Humidity	0-95 %
Pep Verification Date	2025-08-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
