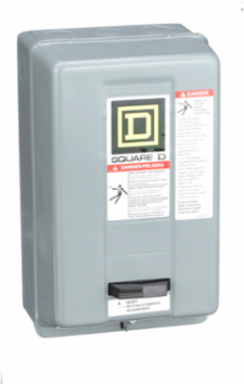

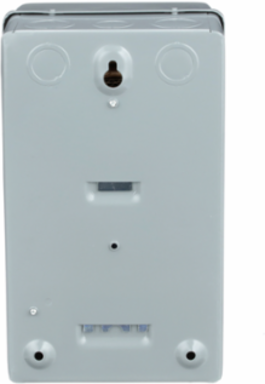

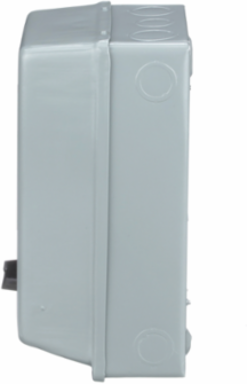

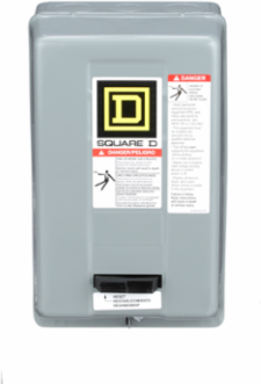

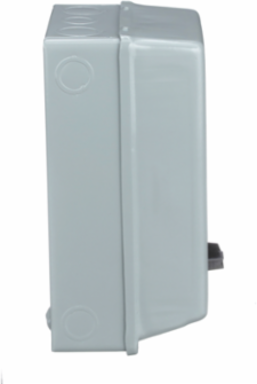

Square D 8536SAG12V02H30S NEMA Motor Starter Type S Size 00, 9A, 2HP, 3 Phase, NEMA 1 Enclosure
- MPN: 8536SAG12V02H30S
- UPC: 785901752202
- PPN: SCH-8536SAG12V02H30S
CAD
$954.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has 3 phase ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 3A to 9A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

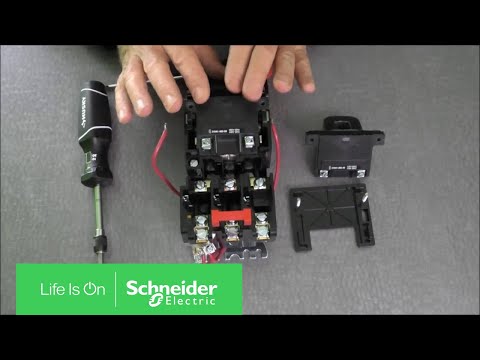

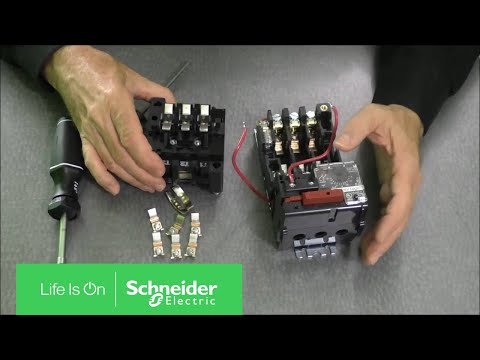

Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Depth
- 141 mm
ComplianceTAA Compliant
Complementary Attributes
- Rated Power In Hp
- 1.5 HP 200 V AC, 1.5 HP 230 V AC2 HP 460 V AC, 2 HP 575 V AC
- Line Rated Current
- 9 A
Control Circuitseparate control circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Listed, CSA, NEMA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 6 kg CO2 eq., 5.769068382070696
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 24 kg CO2 eq., 23.795326021336955
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- no control units
- Energy Efficiency Optimized
- False
- Motor Starter Type
- non reversing
- Phase
- 3 phase
- Product Or Component Type
- motor starter
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 119 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 73
- Width Nominal
- 152 mm
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 3.334 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]2.7678199292101024, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.3603230570380081, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]86 kg CO2 eq., 85.99422016245423
Local Publishable Date2025-12-16
Stocking FlagY
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Control Circuitseparate control circuit
Electrical Connectionscrew clamp terminals
Local Signallingwithout pilot light
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductS
Software Versionv6.2.4
Thermal Overload Typesolid state Motor Logic class 10/20
Pep CodeENVPEP2506062EN
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal254 mm
[Uc] Control Circuit Voltage110 V AC 50 Hz120 V AC 60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536504000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2506062EN
- Nema Degree Of Protection
- NEMA 1 painted sheet steel
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint118.68675755211
Eu Rohs DirectiveCompliant
Nema Size00
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2506062EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 3 phase
- Range Of Product
- S
Product Or Component Typemotor starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
