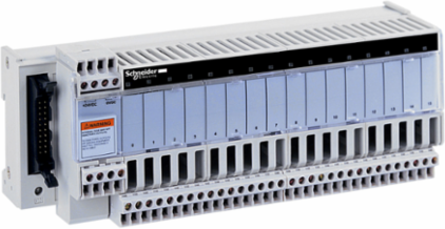

Schneider Electric ABE7R08S111 8-Channel Electromechanical Relay Sub-Base 5 mm, Mercury Free, 2 A
- MPN: ABE7R08S111
- PPN: SCH-ABE7R08S111
CAD
$280.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
8-Channel Electromechanical Relay Sub-Base 5 mm, Mercury Free, 2 A
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Modicon ABE7
- Number Of Terminal Per Channel
- 1
- [Us] Rated Supply Voltage
- 24 V DC PLC end
Product Or Component Typeelectromechanical output relay sub-base
Number Of Channels8
Complementary
- Contacts Type And Composition
- 1 NO preactuator end
- Terminal Block Type
- removable
- Maximum Current Per Output Common
- 12 A
- [Ui] Rated Insulation Voltage
- 2000 V
- Electrical Durability
- 500000 cycles 200 mA 24 V DC-13 10 ms preactuator end) || 500000 cycles 400 mA 230 V AC-15 preactuator end) || 500000 cycles 600 mA 230 V AC-12 preactuator end) || 500000 cycles 600 mA 24 V DC-12 preactuator end)
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Contact Bounce Time
- <= 5 ms 1 NO
- Tightening Torque
- 0.6 N.m flat Ø 3.5 mm
- Mechanical Durability
- 20000000 cycles
- Maximum Power Dissipation Per Channel In W
- 0.22 W PLC end)
- Width
- 84 mm
- Electrical Reliability
- 1e-008
- Drop-Out Current
- 0.5 mA 20 °C
Minimum Switching Current1 mA >= 5 V
Installation CategoryII IEC 60664-1
Current Per Channel2 A preactuator end
Net Weight0.252 kg
Fixing Modeby clips (35 mm symmetrical DIN rail) || by screws (solid plate with fixing kit)
Maximum Switching Voltage250 V AC 50/60 Hz IEC 60947-5-1 || 30 V DC IEC 60947-5-1
Polarity Distributionpolarity distribution contact common per group of 4 channels
Number Of Channel Per Common4
Operating Time<= 10 ms coil energisation and NO closing || <= 6 ms coil de-energisation and NO opening
Drop-Out Voltage2.4 V 20 °C PLC end)
Operating Rate In Hz10 Hz no load || 0.5 Hz at Ie
Threshold Tripping Voltage19.2 V 40 °C
Environment
- Product Certifications
- DNV || UL || GL || CSA || EAC
- Ambient Air Temperature For Operation
- -5-60 °C IEC 61131-2
- Dielectric Strength
- 2000 V IEC 60947-1
- Ip Degree Of Protection
- IP2X IEC 60529
- Resistance To Incandescent Wire
- 750 °C 30 s IEC 60695-2-11
- Protective Treatment
- TC
Resistance To Radiated Fields10 V/m 26000000-1000000000 Hz)IEC 61000-4-3 level 3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Max Immunity To Microbreaks5 ms
Pollution Degree2 IEC 60664-1
Ambient Air Temperature For Storage-40-80 °C IEC 61131-2
Resistance To Fast Transients2 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121229EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1212029EN
