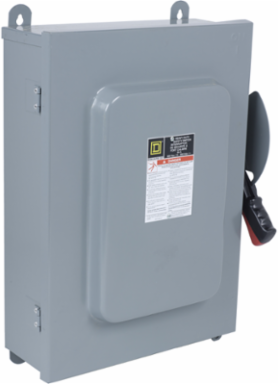

Square D HU462AWK Heavy Duty Non-Fusible Safety Switch 600V 60A 4-Pole NEMA 12
Square D HU462AWK Heavy Duty Non-Fusible Safety Switch 600V 60A 4-Pole NEMA 12
- MPN: HU462AWK
- UPC: 785901505105
- PPN: SCH-HU462AWK
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1125.26/ EA
Description
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
Specifications
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2305006EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Complementary

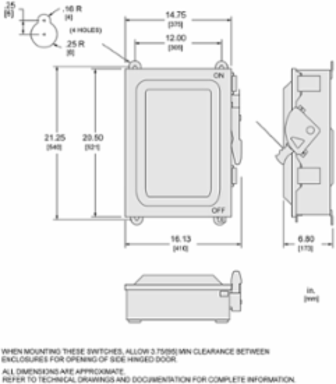

- Height
- 20.5 in
- Tightening Torque
- 50-50 lbf.in AWG 3) || 45-45 lbf.in AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² AWG 8) || 50-50 lbf.in 2.06-5.261 mm² AWG 14...AWG 10)
- Awg Gauge
- AWG 14...AWG 3 copper || AWG 12...AWG 3 aluminum

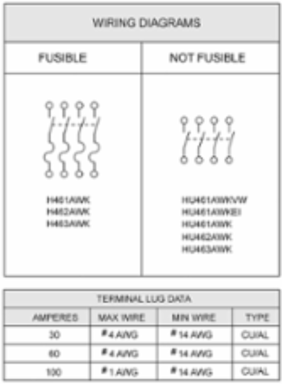

- Wiring Configuration
- 4-wire
- Net Weight
- 12 kg
Device Mountingsurface
Electrical Connectionlugs
Width16.13 in
Depth6.8 in
Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 3R/12 galvannealed steel
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 4
Disconnector Device Typenon-fusible disconnect
[In] Rated Current60 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
