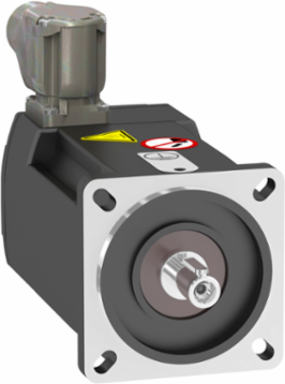

Schneider Electric BMP0701F3NA2A Synchronous Motor 0.37 kW 480 VAC IP65 3000 RPM
- MPN: BMP0701F3NA2A
- PPN: SCH-BMP0701F3NA2A
CAD
$1310.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for efficiency and reliable performance, the synchronous motor from Schneider Electric operates at 0.37 kW and 480 VAC, making it a robust option for various industrial applications. With an impressive speed of 3000 RPM, this motor is perfectly suited for demanding environments requiring consistent and precise operation. Its IP65 rating ensures protection against dust and water, allowing it to perform optimally even in challenging conditions. This motor is an essential component for enhancing automation and control systems within general machinery drives, providing both durability and effectiveness for modern industrial needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, United States
Physical Attributes
- Key Width
- 4 mm
- Shaft Length
- 23 mm
Motor Flange Size70 mm
Complementary Attributes
- Maximum Current Irms
- 2.3 A ATV32 0.37 kW 400 V three phase, 2.3 A ATV320 0.37 kW 400 V three phase
- Minimum Operating Frequency
- 60 Hz ATV32 0.37 kW 400 V three phase, 60 Hz ATV320 0.37 kW 400 V three phase
- Maximum Mechanical Speed
- 3600 rpm
Maximum Operating Frequency300 Hz ATV32 0.37 kW 400 V three phase, 300 Hz ATV320 0.37 kW 400 V three phase
Maximum Axial Force Fa0.2 x Fr
Maximum Radial Force Fr660 N 1000 rpm520 N 2000 rpm460 N 3000 rpm410 N 4000 rpm
Important Information Attributes
- Nominal Operating Frequency
- 250 Hz ATV32 0.37 kW 400 V three phase, 250 Hz ATV320 0.37 kW 400 V three phase
- Nominal Torque
- 1.18 N.m ATV32 0.37 kW 400 V three phase, 1.18 N.m ATV320 0.37 kW 400 V three phase
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- Yes
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Centring Collar Diameter
- 60 mm
- Device Short Name
- BMP
- Holding Brake
- without
- Mounting Support
- international standard flange
- Number Of Motor Stacks
- 1
- Phase
- three phase
- Product Or Component Type
- synchronous motor
- Rotor Inertia
- 0.59 kg.cm²
- Shaft End
- keyed
- Sustainable Packaging
- No
- Type Of Cooling
- natural convection
- Pep Code
- ENVPEP111049EN
- [Us] Rated Supply Voltage
- 480 V
- Package Weight(Lbs)
- 2.087 kg
- Warranty (In Months)
- 18
Nominal Speed3000 rpm ATV32 0.37 kW 400 V three phase, 3000 rpm ATV320 0.37 kW 400 V three phase
Stator Inductance40.03 mH for q-axis winding 40 °C, 40.03 mH for d-axis winding 40 °C
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Circle Diameter Of The Mounting Holes75-82 mm
Electrical Connectionrotatable right-angled connector
Mounting Holes Diameter5.5 mm
Number Of Motor Poles5
Number Of Mounting Holes4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Shaft Diameter11 mm
Stator Resistance17.75 Ohm 40 °C
Torque Constant1.48 N.m/A 40 °C
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Length Total122 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8501514040
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Environmental Disclosure
- ENVPEP111049EN
- Ip Degree Of Protection
- IP65 standardIP67 with IP67 kit
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Product Compatibilityvariable speed drive ATV32 0.37 kW 400 V three phasevariable speed drive ATV320 0.37 kW 380...500 V three phase
Pep CodeENVPEP111049EN
General Attributes
- Phase
- three phase
Product Or Component Typesynchronous motor
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Nominal Output Power
- 370 W ATV32 0.37 kW 400 V three phase, 370 W ATV320 0.37 kW 400 V three phase
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
