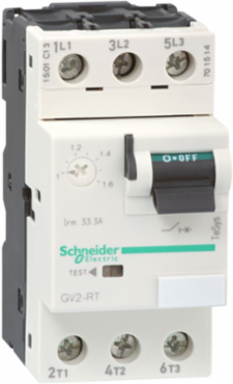

Schneider Electric GV2RT06 TeSys Deca Motor Circuit Breaker, 3 Pole, 1.6A, Thermal-Magnetic
- MPN: GV2RT06
- PPN: SCH-GV2RT06
CAD
$532.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV motor circuit breaker, 3 poles (3P), 1.6A/690V, for high starting current peak motor applications 0.37-0.55kW@400V. It provides a thermal-magnetic protection with a thermal setting range 1-1.6A, a magnetic tripping level at 20xIn, high breaking capacity Icu 100kA. Connection by screw clamp terminals. Start-stop control by toggle guaranteed for 100 000 cycles AC-3. It can be used for protection of 3-phase transformer applications. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- motor circuit breaker
- Range
- TeSys Deca
- Device Short Name
- GV2RT
Product NameTeSys GV2 || TeSys Deca
Device Applicationmotor protection || motor
Trip Unit Technologythermal-magnetic
Complementary
- [In] Rated Current
- 1.6 A
- Height
- 89 mm
- Network Type
- AC
- [Ith] Conventional Free Air Thermal Current
- 1.6 A IEC 60947-4-1
- Utilisation Category
- category A IEC 60947-2 || AC-3 IEC 60947-4-1 || AC-3e IEC 60947-4-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Power Dissipation Per Pole
- 2.5 W
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Suitability For Isolation
- yes IEC 60947-1 § 7-1-6
- Tightening Torque
- 1.7 N.m screw clamp terminal
- Poles Description
- 3P
- Depth
- 78.5 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
Rated Dutycontinuous IEC 60947-4-1
Magnetic Tripping Current33-33 A
Motor Power Kw0.18-0.18 kW 220/230 V AC 50/60 Hz motor protection high peak current || 0.25-0.25 kW 220/230 V AC 50/60 Hz motor protection high peak current || 0.37-0.37 kW 400/415 V AC 50/60 Hz motor protection high peak current || 0.55-0.55 kW 400/415 V AC 50/60 Hz motor protection high peak current || 0.37-0.37 kW 440 V AC 50/60 Hz motor protection high peak current || 0.55-0.55 kW 440 V AC 50/60 Hz motor protection high peak current || 0.37-0.37 kW 500 V AC 50/60 Hz motor protection high peak current || 0.55-0.55 kW 500 V AC 50/60 Hz motor protection high peak current || 0.75-0.75 kW 500 V AC 50/60 Hz motor protection high peak current || 0.75-0.75 kW 690 V AC 50/60 Hz motor protection high peak current || 1.1-1.1 kW 690 V AC 50/60 Hz motor protection high peak current || 0.4-0.4 kW 230/240 V AC 50/60 Hz transformer protection || 0.63-0.63 kW 400/415 V AC 50/60 Hz transformer protection
Fixing Mode35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
Control Typetoggle
Electrical Durability100000 cycles AC-3 415 V In || 100000 cycles AC-3e 415 V In
Breaking Capacity100 kA Icu 220/230 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 || 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Thermal Protection Adjustment Range1-1.6 A IEC 60947-4-1
Mechanical Durability100000 cycles
Width45 mm
Network Frequency50/60 Hz IEC 60947-4-1
Environment
- Product Certifications
- CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || UKCA
- Mechanical Robustness
- shocks 30 Gn for 11 ms || vibrations 5 Gn, 5...150 Hz
- Standards
- EN/IEC 60947-2 || EN/IEC 60947-4-1
- Ambient Air Temperature For Storage
- -40-80 °C
- Operating Altitude
- 2000 m
Ik Degree Of ProtectionIK04
Ambient Air Temperature For Operation-20-60 °C
Climatic WithstandIACS E10
Ip Degree Of ProtectionIP20 IEC 60529
Fire Resistance960 °C IEC 60695-2-11
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121004
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI121004
