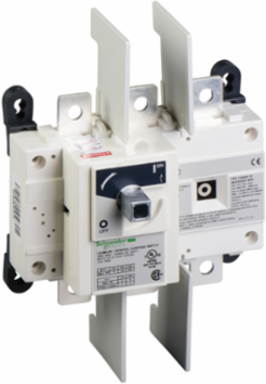

Schneider Electric LK4MU3N TeSys LK Non-Fusible Disconnect Switch 200A 600V 3 Pole
- MPN: LK4MU3N
- PPN: SCH-LK4MU3N
CAD
$596.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 200 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 75 HP rating at 240 VAC, a 150 HP rating at 480 VAC, a 200 HP rating at 600 VAC, a 15 HP rating at 125 VDC and a 15 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle. This 200A disconnect switch has a 200kA short circuit current rating (SCCR) when used with Type J fuses. Each terminal has a lug that will accept one 6 AWG to 300 kcmil copper or aluminum wire. The disconnect switch is 6.30 inches tall, 7.09 inches wide and 3.72 inches deep. TeSys LK his motor circuit protector is UL Listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Disconnector Device Type
- non-fusible disconnect switch
- Product Name
- TeSys LK
- Suitability For Isolation
- yes
Product Or Component TypeDisconnect Switch
RangeTeSys
Complementary
- [Icw] Rated Short-Time Withstand Current
- 32 kA
- Rated Power In W
- 100 kW 400 V || 140 kW 500 V || 185 kW 690 V
- Height
- 160 mm
- Mounting Support
- plate
- [Ui] Rated Insulation Voltage
- 750 V
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC
- Connections - Terminals
- lugs-ring terminals 1 16-16 mm²
- Mechanical Durability
- 8000 cycles
- Rated Power In Hp
- 75 hp 240 V 92 A AC || 150 hp 480 V 187 A AC || 200 hp 600 V 192 A AC || 15 hp 125 V 112 A DC || 15 hp 250 V 56 A DC
- Width
- 180 mm
Network Frequency50/60 Hz
[Ue] Rated Operational Voltage600 V AC 50/60 Hz
Type Of Operating Handleexternal frontal || external right side
Network TypeAC || DC
Net Weight2.28 kg
Control Typerotary handle
Electrical Durability6000 cycles
Poles Description3P
[Ie] Rated Operational Current200 A400 V AC AC-22A IEC || 200 A400 V AC AC-23A IEC || 200 A690 V AC AC-22A IEC || 200 A690 V AC AC-23A IEC || 200 A CSA || 200 A UL
Depth95 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Environment
- Product Certifications
- UL || CSA || CE
StandardsIEC 60947-3 || CSA C22.2 No 4 || UL98
