Schneider Electric VCDN20 TeSys Vario Switch Disconnector, 20A, 3 Poles, IP65 for Door Mounting
Schneider Electric VCDN20 TeSys Vario Switch Disconnector, 20A, 3 Poles, IP65 for Door Mounting
- MPN: VCDN20
- PPN: SCH-VCDN20
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$102.51/ EA
Description

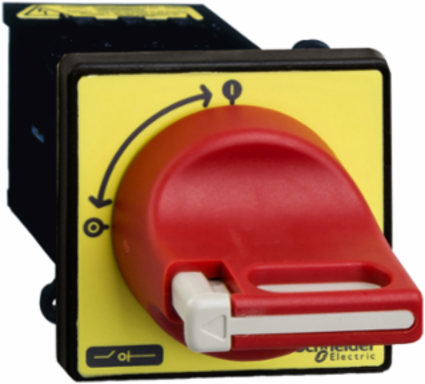

TeSys Vario switch disconnector for door mounting, 3 poles, 20A/690V, for motor switching applications up to 5.5kW@400V AC-23. Complete unit composed of a switch body VN20, a red handle with yellow 60x60mm front plate KCD1PZ. Intended for main and emergency stop switch disconnecting usage. Padlockable handle, for 3 padlocks (to be ordered separately). Handle with central fixing to be mounted on door, it ensures IP65 to the mounting. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- GL || CSA || UL || CCC || UKCA
- Ip Degree Of Protection
- IP65
- Mechanical Robustness
- shocks 11 ms 15 gn) IEC 60068-2-27 || vibrations 10...150 Hz 1 gn) IEC 60068-2-6
StandardsIEC 60947-3
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211017
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 60 mm
- [Ith] Conventional Free Air Thermal Current
- 20 A
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- Base Dimension
- 60 x 60 mm
- Making Capacity
- 200 A 400 V AC-21A || 200 A 400 V AC-22A || 200 A 400 V AC-23A
- [Icm] Rated Short-Circuit Making Capacity
- 0.5 kA 400 V at Ipeak
- Suitability For Isolation
- yes
- [Ie] Rated Operational Current
- 11 A AC-23)400 V
- Width
- 60 mm
- Device Composition
- handle || switch
- Rated Operational Power In W
- 4 kW 230...240 V AC-23A) || 5.5 kW 400...415 V AC-23A) || 7.5 kW 500 V AC-23A) || 11 kW 690 V AC-23A) || 3 kW 230...240 V AC-3) || 4 kW 400...415 V AC-3) || 5.5 kW 500 V AC-3) || 5.5 kW 690 V AC-3)
- [Icw] Rated Short-Time Withstand Current
- 140 A 400 V 1 s
Intermittent Duty Class30
Fixing Modehole 22.5 mm handle
Marking0 - 1
Net Weight0.177 kg
Connections - Terminalspower circuit screw clamp terminals 4-4 mm² flexible - with cable end || power circuit screw clamp terminals 4-4 mm² solid
Electrical Durability30000 cycles DC-1...5 || 50000 cycles AC-21
Mounting Supporthandle door || switch door
Mechanical Durability50000 cycles
Tightening Torquepower circuit 0.7-0.7 N.m screw clamp terminals
Breaking Capacity200 kA 400 V AC-21A) || 200 kA 400 V AC-22A) || 200 kA 400 V AC-23A)
Rated Conditional Short-Circuit Current6 kA 400 V 20 A aM || 6 kA 400 V 20 A gG
Specifications
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Network Type
- DC || AC
- Handle Colour
- red
- Product Name
- TeSys Mini-VARIO
- Range
- TeSys
- Contacts Type And Composition
- 3 NO
- Device Short Name
- VCDN
Rotary Handle Mounting Styledirect
Handle Front Plate Colouryellow
Product Or Component Typeemergency stop switch disconnector
Performance Levelstandard
Control Typerotary handle
Poles Description3P
