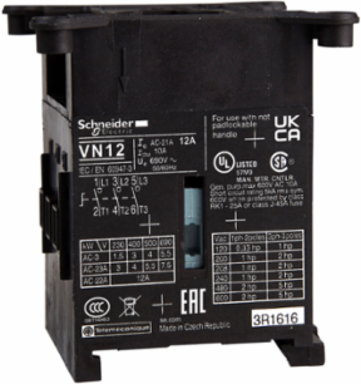

Schneider Electric VN12 TeSys Mini-Vario Switch Body, 3 Poles, 12A, IP20, Compact Size
- MPN: VN12
- PPN: SCH-VN12
CAD
$41.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VN12 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric for motor applications 4kW@400V AC-23. It requires an operating handle and extension shaft to form a complete unit for enclosure mounting. VN12 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 12A 690V, it is used in motor applications 4kW@400V AC-23. It requires an operating handle and extension shaft to form a main or emergency stop switch disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole switch body for rotary switch disconnector assemblies. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 on each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States

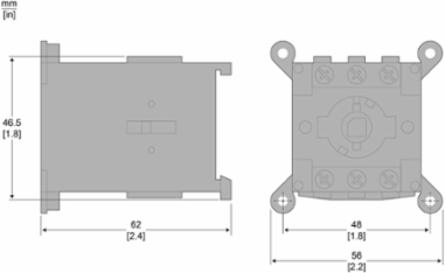

Depth62 mm
Complementary Attributes
- Rated Operational Power In W
- 3 kW 230...240 V AC-23A), 4 kW 400...415 V AC-23A), 3 kW 400...415 V AC-3)4 kW 500 V AC-3), 4 kW 690 V AC-3)1.5 kW 230...240 V AC-3)5.5 kW 500 V AC-23A), 7.5 kW 690 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Making Capacity
- 120 A 400 V AC-21A, 120 A 400 V AC-22A, 120 A 400 V AC-23A
- Certificate Agency
- UL, CSA, GL, UKCA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.012990745472783224, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.03333387170160615
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 5 kg CO2 eq., 4.986699999999999
- Local Publishable Date
- 2026-07-15
- Stocking Flag
- Y
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contacts Type And Composition
- 3 NO
- Electrical Durability
- 30000 cycles DC-1...550000 cycles AC-21
- Intermittent Duty Class
- 30
- Mechanical Robustness
- vibrations 10...150 Hz 5 gn) IEC 60068-2-6shocks 11 ms 15 gn) IEC 60068-2-27
- Network Frequency
- 50/60 Hz
- Performance Level
- standard
- Product Name
- TeSys VARIO
- Protective Treatment
- TC
- Returnability
- Yes
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 7-7 N.m screw clamp terminals
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2211017EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 42
- Width Nominal
- 56 mm
- [Icw] Rated Short-time Withstand Current
- 140 A 400 V 1 s
- [Ith] Conventional Free Air Thermal Current
- 12 A
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Connections - Terminals
- power circuit screw clamp terminals 4-4 mm² solidpower circuit screw clamp terminals 4-4 mm² flexible - with cable end
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Network TypeDC, AC
Rated Conditional Short-circuit Current6 kA 400 V 12 A aM, 6 kA 400 V 12 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2708503106346624, 0.3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.7 kg CO2 eq., 0.6775729819100018
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeV
Device Short NameVN
Fire Resistance960 °C IEC 60695-2-1
Mechanical Durability50000 cycles
Mounting Supportsymmetrical rail
Number Of Poles3P
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeswitch body
RangeTeSys
Software Versionv5.9.4
Sustainable PackagingYes
Total Lifecycle Carbon Footprint6 kg CO2 eq.
Rated Thermal Current10 A
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh74.6352
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal46.5 mm
[Icm] Rated Short-circuit Making Capacity0.5 kA 400 V at Ipeak
[Ie] Rated Operational Current8.1 A AC-23)400 V
[Ithe] Conventional Enclosed Thermal Current10 A
[Uimp] Rated Impulse Withstand Voltage6 kV
Halogen-free StatusHalogen free product
Package Weight(Lbs)119.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 5.981447909719052
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2211017EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Halogene PerformanceHalogen free product
Mercury FreeYes
Environmental DisclosureENVPEP2211017EN
Halogen Content PerformanceHalogen free product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- switch body
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
