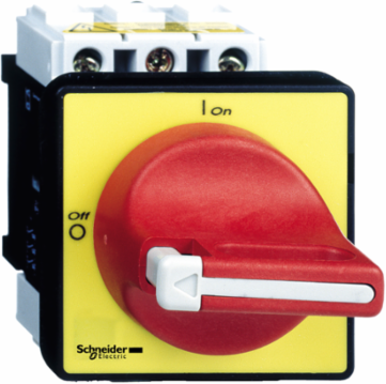

Schneider Electric VCF1 TeSys Vario 3-Pole Switch Disconnector, 32A, Red/Yellow Front Plate
- MPN: VCF1
- PPN: SCH-VCF1
- UNSPSC: 39122233
CAD
$140.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
VCF1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 11KW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 11KW@400V AC-23. It consists of a V1 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V1 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ1), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).
Features
- Built to manage up to 11 kW at 400V (AC-23A) with a 32-amp continuous thermal current rating, this 3-pole TeSys Vario switch provides robust on-load breaking of inductive circuits. It serves as a highly reliable main or emergency-stop mechanism, immediately isolating power to conveyors, fans, and heavy machinery during critical machine interventions or automated line failures.
- Featuring a vivid red rotary knob paired with a bright yellow $60 \times 60\text{ mm}$ front plate, this assembly is purpose-built to comply with strict international emergency signaling protocols. The stark color contrast ensures that plant floor staff and line workers can quickly spot and actuate the isolator from a distance, minimizing response time and preventing catastrophic equipment damage or personnel injuries.
- Designed with a 4-screw direct door-mounting layout, the handle forms a tight, dust-proof and water-jet resistant IP65 seal against the outer surface of your control cabinet enclosure. This protective boundary keeps internal terminals dry and clean, preventing tracking and arc-flash faults even in demanding processing plants that require routine chemical washdowns or face high airborne particle counts.
- The integrated rotary handle features a built-in mechanical shroud capable of accepting up to three individual 4 to 8 mm shackle padlocks simultaneously in the "0" (OFF) position. This fail-safe architecture streamlines compliant OSHA lockout-tagout safety processes, ensuring multiple technicians can work confidently on downstream equipment without the risk of an accidental, premature system re-energization.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, United States |
|---|
| Weight | 250 g |
|---|
Complementary Attributes
| Rated Operational Power In W | 7.5 kW 690 V AC-3)7.5 kW 400...415 V AC-3), 11 kW 500 V AC-23A)15 kW 690 V AC-23A)7.5 kW 500 V AC-3)1.5 kW 230...240 V AC-3), 5.5 kW 230...240 V AC-23A), 11 kW 400...415 V AC-23A) |
|---|---|
| Icm Rated Short Circuit Making Capacity | 1 kA 400 V at Ipeak |
| Ie Rated Operational Current | 21.8 A AC-23 Ue: 400 V |
| Uimp Rated Impulse Withstand Voltage | 8 kV |
| Rated Conditional Short Circuit Current | 10 kA 400 V 35 A aM, 10 kA 400 V 35 A gG |
|---|---|
| Icw Rated Short Time Withstand Current | 384 A 400 V 1 s |
| Ue Rated Operational Voltage | 690 V AC 50/60 Hz |
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | switch, handle |
| Mounting Support | handle door, switch door |
| Connections Terminals | power circuit screw clamp terminals 10-10 mm² solid, power circuit screw clamp terminals 6-6 mm² flexible - with cable end |
| Carbon Footprint Of The Distribution Phase A4 | 0.04871669193150384, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.02191936744141827 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 29 kg CO2 eq., 28.971796700100345 |
| Local Publishable Date | 2026-06-27 |
| Device Type | LV equipment - LV switch - disconnector |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1936 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Base Dimension | 60 x 60 mm |
| Contacts Type And Composition | 3 NO |
| Device Short Name | VCF |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Intermittent Duty Class | 30 |
| Mechanical Durability | 100000 cycles |
| Number Of Poles | 3P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | emergency stop switch disconnector |
| Range | TeSys |
| Rotary Handle Mounting Style | direct |
| Software Version | v6.1 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 31 kg CO2 eq. |
| Handle Color | red |
| Thermal Current 3 | 32 A |
| Data Source | extrapolated product |
| Width Nominal | 60 mm |
| Customs Code | 8536509025 |
| Ithe Conventional Enclosed Thermal Current | 25 A |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 57 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Making Capacity | 320 A 400 V AC-21A, 320 A 400 V AC-22A, 320 A 400 V AC-23A |
| Network Type | DC, AC |
| Certificate Agency | UL, CSA, CCC, GL, UKCA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.6629610756790507, 0.7 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 1.579208650841355 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Compatibility Code | main switch disconnector |
| Control Type | rotary handle |
| Electrical Durability | 100000 cycles AC-2130000 cycles DC-1...5 |
| Fixing Mode | by 4 screws handle |
| Marking | 0 - 1 |
| Mechanical Robustness | vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27 |
| Performance Level | high performance |
| Product Name | TeSys VARIO |
| Protective Treatment | TC |
| Returnability | Yes |
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
| Suitability For Isolation | yes |
| Tightening Torque | power circuit 2.1-2.1 N.m screw clamp terminals |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Handle Front Plate Color | yellow |
| Database Version | 2023-02 |
| Height Nominal | 74 mm |
| Nbr. Of Units In Pkg. | 1 |
| Ith Conventional Free Air Thermal Current | 32 A |
| Halogen Free Status | Halogen free product |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional Unit Unit | unit |
