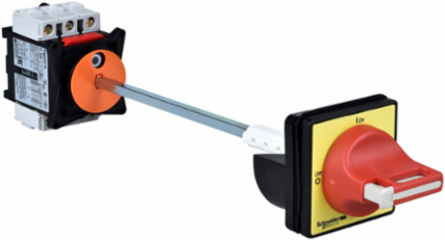

Schneider Electric VCCF3 TeSys Emergency Stop Switch Disconnector 63A 3P IP65
- MPN: VCCF3
- PPN: SCH-VCCF3
CAD
$246.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VCCF3 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 63A 690V, it is used for main and emergency stop switching in motor applications up to 22kW@400V AC-23. Composed of a V3 switch body, extension shaft, red padlockable handle, and a yellow 60x60mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Possible distance between back of enclosure and door 300-320mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Features
- This complete 3-pole TeSys Vario switch-disconnector features a highly visible red rotary handle and 60x60mm yellow front plate designed explicitly for main and emergency-stop operation.
- This specialized rear-mounting configuration secures the switch body directly to the back plate or symmetrical rail of your enclosure while utilizing an included VZN18 extension shaft to span a door distance of 300mm to 320mm. The door-interlock design ensures the enclosure cannot be opened while the circuit is live, saving vital panel space and preventing accidental contact during heavy-duty electrical maintenance.
- The handle assembly mounts securely to your enclosure door with a 4-screw fixing system that provides a robust IP65 against water jets, oil, and dust infiltration. Inside, the terminal connections are protected to IP20 standards, ensuring long-term operational durability and shock resistance in ambient operating temperatures ranging from -20 C to 50 C.
- This heavy-duty isolator features a 63A conventional free-air thermal current and an enclosed thermal current of 50A, meaning it handles rigorous industrial distribution systems without degrading over time. It boasts a high-performance electrical durability of 30,000 cycles under AC-21 conditions, minimizing costly downtime by eliminating the need for frequent component replacements.
- This Schneider Electric Canada part complies fully with international standards including IEC 60947-3, alongside vital North American certifications such as UL, CSA, UKCA, and CCC. Specifying this multi-standard, eco-friendly (RoHS/REACh compliant) component ensures your control panels effortlessly pass regulatory inspections and meet local building code safety audits.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Germany, United States
Physical Attributes
- Handle Color
- red
Handle Front Plate Coloryellow
Complementary Attributes
- Rated Operational Power In W
- 18.5 kW 690 V AC-3), 22 kW 400...415 V AC-23A), 11 kW 230...240 V AC-3), 22 kW 500 V AC-3), 22 kW 690 V AC-23A), 30 kW 500 V AC-23A), 18.5 kW 400...415 V AC-3), 15 kW 230...240 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- switch, handle, shaft extension
- Fixing Mode
- by 4 screws handle, by clips switch, by screws switch
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6, shocks 11 ms 30 Gn) IEC 60068-2-27
- Network Type
- DC, AC
- Connections - Terminals
- power circuit screw clamp terminals 25-25 mm² solid, power circuit screw clamp terminals 16-16 mm² flexible - with cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.08574137779944677, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.038578086696896156
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 29 kg CO2 eq., 28.971796700100345
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Base Dimension
- 60 x 60 mm
- Contacts Type And Composition
- 3 NO
- Device Short Name
- VCCF
- Intermittent Duty Class
- 30
- Mechanical Durability
- 30000 cycles
- Performance Level
- high performance
- Product Name
- TeSys VARIO
- Protective Treatment
- TC
- Returnability
- Yes
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Suitability For Isolation
- yes
- Tightening Torque
- power circuit 4-4 N.m screw clamp terminals
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Handle Front Plate Color
- yellow
- Pep Code
- ENVPEP2211006EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Czech Republic, CZ
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; France, FR
- Recyclability Potential, In %
- 57
- Width Nominal
- 60 mm
- [Icw] Rated Short-time Withstand Current
- 756 A 400 V 1 s
- [Ith] Conventional Free Air Thermal Current
- 63 A
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Electrical Durability30000 cycles AC-21, 30000 cycles DC-1...5
Making Capacity630 A 400 V AC-21A, 630 A 400 V AC-22A, 630 A 400 V AC-23A
Mounting Supporthandle door, switch symmetrical rail, switch plate
Certificate AgencyUL, CCC, GL, CSA, UKCA
Rated Conditional Short-circuit Current10 kA 400 V 63 A aM, 10 kA 400 V 63 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.1668114931951294, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 2.779407225480785
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Compatibility Codemain switch disconnector
Control Typerotary handle
Fire Resistance960 °C IEC 60695-2-1
Marking0 - 1
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeemergency stop switch disconnector
RangeTeSys
Rotary Handle Mounting Styleextended
Software Versionv6.1
Sustainable PackagingNo
Total Lifecycle Carbon Footprint33 kg CO2 eq.
Handle Colorred
Thermal Current 363 A
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh433.62
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; France, FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; France, FR
Height Nominal83 mm
[Icm] Rated Short-circuit Making Capacity2.1 kA 400 V at Ipeak
[Ie] Rated Operational Current41.5 A AC-23 Ue: 400 V
[Ithe] Conventional Enclosed Thermal Current50 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Package Weight(Lbs)570.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ip Degree Of Protection
- IP20 conforming to IEC 60529, IP65
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211006EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint33.0423348832726
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- emergency stop switch disconnector
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
