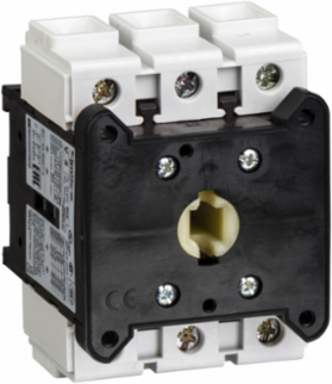

Schneider Electric V4 TeSys Vario Switch Body, 3 Poles, 80A, 690V AC, IP20, 83mm Height
- MPN: V4
- PPN: SCH-V4
CAD
$305.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
V4 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 80A 690V, it is used in motor applications up to 30kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, Germany, United States
Depth65 mm
Complementary Attributes
- Rated Operational Power In W
- 18.5 kW 230...240 V AC-23A), 30 kW 400...415 V AC-23A), 15 kW 230...240 V AC-3)22 kW 400...415 V AC-3)30 kW 500 V AC-3)30 kW 690 V AC-23A), 37 kW 500 V AC-23A), 18.5 kW 690 V AC-3)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 30000 cycles AC-21, 30000 cycles DC-1...5
- Mounting Support
- plate, symmetrical rail
- Certificate Agency
- UL, CSA, GL, UKCA
- Carbon Footprint Of The Distribution Phase [A4]
- 0.09743338386300768, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.04383873488283654
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 29 kg CO2 eq., 28.971796700100345
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV switch - disconnector
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- V
- Device Short Name
- V
- Intermittent Duty Class
- 30
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- switch body
- Range
- TeSys
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 34 kg CO2 eq.
- Thermal Current 3
- 80 A
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 433.62
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 83 mm
- [Icm] Rated Short-circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- [Ie] Rated Operational Current
- 57 A AC-23 Ue: 400 V
- [Ithe] Conventional Enclosed Thermal Current
- 63 A
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Halogen-free Status
- Halogen free product
- Package Weight(Lbs)
- 297.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Making Capacity800 A 400 V AC-21A, 800 A 400 V AC-22A, 800 A 400 V AC-23A
Network TypeDC, AC
Rated Conditional Short-circuit Current10 kA 400 V 80 A aM, 10 kA 400 V 80 A gG
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.3259221513581014, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.15841730168271
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition3 NO
Fire Resistance960 °C IEC 60695-2-1
Mechanical Durability30000 cycles
Network Frequency50/60 Hz
Performance Levelhigh performance
Product NameTeSys VARIO
Protective TreatmentTC
ReturnabilityYes
Suitability For Isolationyes
Tightening Torquepower circuit 4-4 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2211006EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %57
Width Nominal60 mm
[Icw] Rated Short-time Withstand Current960 A 400 V 1 s
[Ith] Conventional Free Air Thermal Current80 A
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Connections - Terminalspower circuit screw clamp terminals 16-16 mm² flexible - with cable endpower circuit screw clamp terminals 25-25 mm² solid
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908160
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2211006EN
- Halogen Content Performance
- Halogen free product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Halogene PerformanceHalogen free product
Toxic Heavy Metal FreeYes
Carbon Footprint33.597408271887
Eu Rohs DirectiveCompliant
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211006EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- switch body
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
