Schneider Electric VCFN20GE TeSys Enclosed Switch Disconnector, 16A, IP65, 3-Pole, Rotary Handle
- MPN: VCFN20GE
- PPN: SCH-VCFN20GE
CAD
$129.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

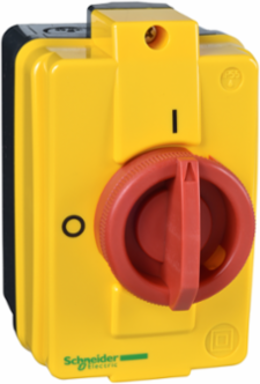

VCFN20GE is a direct-on-line TeSys enclosed starter from Schneider Electric. Enclosure fitted with a yellow cover, red padlockable rotary handle, and a 3-pole VN20 switch body with 2 possible add-on module attachments. Rated The 16A 690V, it is used for main and emergency stop switching in motor applications up to 5.5kW@400V AC-23. Cabling through 2 cable glands on top and bottom, it provides IP55 protection. It conforms to IEC 60947-4-1.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States
Depth106 mm
Physical Attributes
- Handle Color
- red
Handle Front Plate Coloryellow
Complementary Attributes
- Rated Operational Power In W
- 5.5 kW 400 V AC-23)4 kW 400 V AC-3)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Making Capacity
- 200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A
- Rated Conditional Short-circuit Current
- 6 kA 400 V 20 A aM, 6 kA 400 V 20 A gG
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.9233618308721394, 0.9 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.219621900620638
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- enclosed switch disconnector
- Device Short Name
- VCFN
- Fire Resistance
- 960 °C IEC 60595-2-1
- Marking
- 0 - 1
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 30 Gn) IEC 60068-2-27
- Performance Level
- standard
- Product Name
- TeSys Mini-VARIO
- Protective Treatment
- TC
- Returnability
- Yes
- Software Version
- v6.1
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 17 kg CO2 eq.
- Handle Color
- red
- Pep Code
- ENVPEP2211019EN
- Pep Verification Date
- 2025-08-05
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; France, FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; France, FR
- Height Nominal
- 131 mm
- Certificate Agency
- IEC 60947-4-1
- [Icw] Rated Short-time Withstand Current
- 140 A 400 V 1 s
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV
- Package Weight(Lbs)
- 305.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Connections - Terminalscontrol circuit connector 4-4 mm² flexible with cable end, control circuit connector 4-4 mm² solid
Carbon Footprint Of The Distribution Phase [A4]0.08223377598037848, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.1 kg CO2 eq., 0.06673302834232597
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]13 kg CO2 eq., 13.432378470046519
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Base Dimension60 x 60 mm
Control Typerotary handle
Electrical Durability30000 cycles DC-1...550000 cycles AC-21
Intermittent Duty Class30
Mechanical Durability50000 cycles
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeemergency stop switch disconnector
RangeTeSys
Rotary Handle Padlocking1 to 3 padlocks 4-8 mm
Suitability For Isolationyes
Tightening Torquecontrol circuit 0.7-0.7 N.m connector
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Handle Front Plate Coloryellow
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Czech Republic, CZ
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; France, FR
Recyclability Potential In %20
Width Nominal82.5 mm
[Icm] Rated Short-circuit Making Capacity0.5 kA 400 V at Ipeak
[Ie] Rated Operational Current11 A AC-23A)400 V
[Ue] Rated Operational Voltage690 V AC
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509025
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 16.724329005862
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2211019EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2211019EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- emergency stop switch disconnector
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
