Schneider Electric VN20 TeSys Mini-Vario 3 Pole Switch Body, 20A, Compact Size, 690V AC
- MPN: VN20
- PPN: SCH-VN20
CAD
$47.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
VN20 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric for motor applications 5.5kW@400V AC-23. It requires an operating handle and extension shaft to form a complete unit for enclosure mounting. VN20 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 20A 690V, it is used in motor applications 5.5kW@400V AC-23. It requires an operating handle and extension shaft to form a main or emergency stop switch disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine). Vario 3-pole switch body for rotary switch disconnector assemblies. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 on each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United States

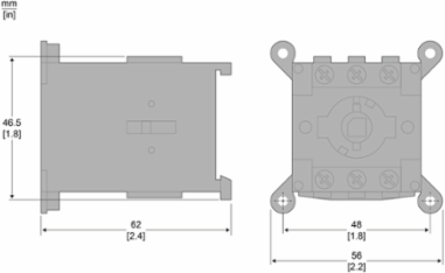

Depth62 mm
Complementary Attributes
- Rated Operational Power In W
- 5.5 kW 690 V AC-3), 4 kW 230...240 V AC-23A), 5.5 kW 400...415 V AC-23A), 11 kW 690 V AC-23A), 3 kW 230...240 V AC-3), 4 kW 400...415 V AC-3), 5.5 kW 500 V AC-3), 7.5 kW 500 V AC-23A)
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 30000 cycles DC-1...5, 50000 cycles AC-21
- Mechanical Robustness
- shocks 11 ms 15 gn) IEC 60068-2-27, vibrations 10...150 Hz 1 gn) IEC 60068-2-6
- Certificate Agency
- GL, UL, CSA, UKCA
- Rated Conditional Short-circuit Current
- 6 kA 400 V 20 A aM, 6 kA 400 V 20 A gG
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2708503106346624, 0.3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.7 kg CO2 eq., 0.6775729819100018
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Compatibility Code
- V
- Device Short Name
- VN
- Intermittent Duty Class
- 30
- Mounting Support
- symmetrical rail
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- switch body
- Range
- TeSys
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 6 kg CO2 eq.
- Rated Thermal Current
- 16 A
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 74.6352
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 46.5 mm
- [Icm] Rated Short-circuit Making Capacity
- 0.5 kA 400 V at Ipeak
- [Ie] Rated Operational Current
- 11 A AC-23)400 V
- [Ithe] Conventional Enclosed Thermal Current
- 16 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Making Capacity200 A 400 V AC-21A, 200 A 400 V AC-22A, 200 A 400 V AC-23A
Network TypeAC, DC
Connections - Terminalspower circuit screw clamp terminals 4-4 mm² solid, power circuit screw clamp terminals 4-4 mm² flexible - with cable end
Carbon Footprint Of The Distribution Phase [A4]0.012990745472783224, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.03333387170160615
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]5 kg CO2 eq., 4.986699999999999
Local Publishable Date2025-12-03
Stocking FlagN
Device TypeLV equipment - LV switch - disconnector
TraceabilityNo
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Contacts Type And Composition3 NO
Fire Resistance960 °C IEC 60695-2-1
Mechanical Durability50000 cycles
Network Frequency50/60 Hz
Performance Levelstandard
Product NameTeSys VARIO
Protective TreatmentTC
ReturnabilityYes
Suitability For Isolationyes
Tightening Torquepower circuit 0.7-0.7 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2211017EN
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential, In %42
Width Nominal56 mm
[Icw] Rated Short-time Withstand Current140 A 400 V 1 s
[Ith] Conventional Free Air Thermal Current20 A
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Halogen-free StatusHalogen free product
Package Weight(Lbs)119.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 5.981447909719052
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2211017EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Halogene PerformanceHalogen free product
Mercury FreeYes
Environmental DisclosureENVPEP2211017EN
Halogen Content PerformanceHalogen free product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-08-05
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- switch body
ETIM
- ETIM 8
- EC000216
ETIM 9EC000216
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
