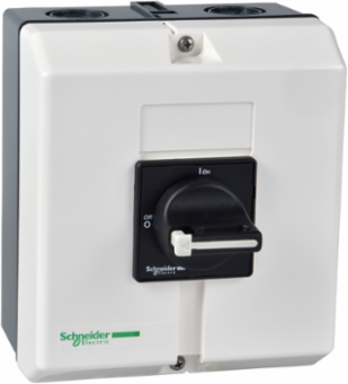

Schneider Electric VBF4GE TeSys Enclosed Switch Disconnector, 63A, IP65, 3 Poles, Rotary Handle
- MPN: VBF4GE
- PPN: SCH-VBF4GE
CAD
$292.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys enclosed starter with switch disconnector, 3 poles, Ithe 63A 690V, for main switching in motor applications up to 30kW@400V AC-23. Enclosure providing IP65 protection, fitted with a black rotary handle and black front plate, padlockable (padlocks not included). It includes a 3-pole Vario switch body V4 with 3 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60204 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Handle Colour
- black
- Product Name
- TeSys VARIO
- Range
- TeSys
- Poles Description
- 3P
- Device Short Name
- VBF
Handle Front Plate Colourblack
Product Or Component Typeenclosed switch disconnector
Performance Levelhigh performance
Control Typerotary handle
Device Applicationpreventive maintenance
Complementary
- [Ue] Rated Operational Voltage
- 690 V AC
- Intermittent Duty Class
- 30
- Marking
- 0 - 1
- Net Weight
- 0.93 kg
- Making Capacity
- 800 A 400 V AC-21A || 800 A 400 V AC-22A || 800 A 400 V AC-23A
- [Icm] Rated Short-Circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- Environmental Characteristic
- standard environment
- [Ie] Rated Operational Current
- 57 A AC-23A)400 V
- Fire Resistance
- 960 °C IEC 60595-2-1
- Tightening Torque
- 4-4 N.m screw clamp terminals
- Breaking Capacity
- 640 A 400 V AC-21A) || 640 A 400 V AC-22A) || 640 A 400 V AC-23A)
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 80 A aM || 10 kA 400 V 80 A gG
Height180 mm
[Ithe] Conventional Enclosed Thermal Current63 A
Base Dimension60 x 60 mm
[Uimp] Rated Impulse Withstand Voltage8 kV
Connections - Terminalsscrew clamp terminals 16-16 mm² flexible - with cable end || screw clamp terminals 25-25 mm² solid
Electrical Durability30000 cycles AC-21 || 30000 cycles DC-1...5
Suitability For Isolationyes
Mechanical Durability30000 cycles
Width157 mm
Depth152 mm
Rated Operational Power In W30 kW 400 V AC-23) || 22 kW 400 V AC-3)
[Icw] Rated Short-Time Withstand Current960 A 400 V 1 s
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ip Degree Of Protection
- IP65 IEC 60529
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
StandardsIEC 60947-4-1 || IEC 60204
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211019
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
