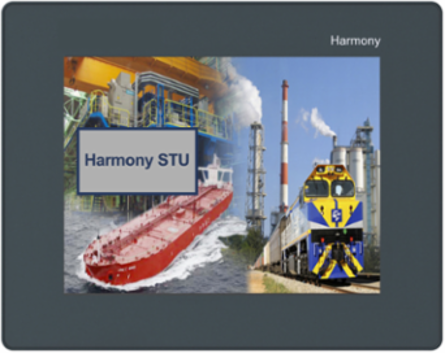

Harmony STO/STU 5.7 Inch Touch Panel Screen QVGA 320x240 LCD

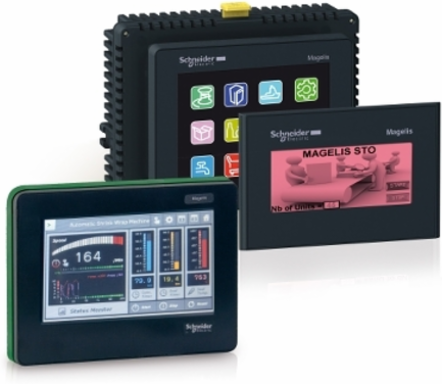

Harmony STO/STU 5.7 Inch Touch Panel Screen QVGA 320x240 LCD
Schneider Electric

Schneider Electric HMISTU855W Harmony STO/STU 5.7 Inch Touch Panel Screen QVGA 320x240 LCD

  • MPN: HMISTU855W
  • PPN: SCH-HMISTU855W
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1146.71

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The touch panel screen features 5.7inch TFT color display, supports 320 x 240 pixels QVGA resolution. It is equipped with 1 USB 2.0 type mini B, 1 USB 2.0 type A, removable screw terminal block for power supply and COM1 serial link (female RJ45, RS232C/RS485 integrated). The screen supports Japanese (ANK, Kanji), Chinese (simplified Chinese), Taiwanese (traditional Chinese), Korean and ASCII character fonts. This touch panel screen has 65536 colors with 50,000 hours of backlight lifespan. It is an IP20/IP65 and NEMA 4X rated product. The enclosure is made of PC/PBT and PPA. Its dimensions are 163mm (width) x 56.5mm (depth) x 129.15mm (height). It is suitable for simple machines and infrastructure applications. This product is certified by CULus, C-Tick, UL class 1 Div2 T4A or T5 and Marine. It meets IEC 61000-6-2, UL 508, UL 1604, EN 61131-2 and FCC Class A standards. Harmony STO (fromerly known as Magelis STO) is powered by the EcoStruxure operator terminal expert and STU (fromerly known as Magelis STU) is powered by Vijeo Designer.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China, Indonesia, Singapore, United States
    Depth56.5 mm

    Physical Attributes

    Display Size
    5.7 inch
    Display Color65536 colours

    Complementary Attributes

    Integrated Connection Type
    1 USB 2.0 type mini B, 1 USB 2.0 type ACOM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s)power supply - removable screw terminal block1 Ethernet - RJ45

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, PB, SC
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Character Font
    ASCII, Japanese (ANK, Kanji), Chinese (simplified Chinese), Taiwanese (traditional Chinese), Korean
    Marking
    CE, without Schneider logo
    Certificate Agency
    cULus, C-tick, UL class 1 Div2 T4A ou T5, Marine, UKCA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.19996, 0.2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    94 kg CO2 eq., 93.873
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Serviceability
    No
    Field Service Division
    IDIBS
    Manufacturing Carbon Footprint
    93.873
    Use Carbon Footprint
    707.41
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI2101003EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1920
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Brightness
    16 levels
    Display Type
    QVGA TFT colour touchscreen
    Fixing Mode
    Ø 22 mm hole
    Inrush Current
    30 A
    Number Of Pages
    limited by internal memory capacity
    Power Consumption In W
    6.8 W
    Processor Name
    CPU ARM9
    Product Or Component Type
    touch panel screen
    Realtime Clock
    access to the PLC real-time clock
    Returnability
    Yes
    Software Designation
    Vijeo Designer
    Supply
    external source
    Sustainable Packaging
    No
    Touch Panel
    analogue
    Display Color
    65536 colours
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: China
    Energy Model - Use [B6]
    Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Height Nominal
    129.15 mm
    [Us] Rated Supply Voltage
    24 V DC
    F-gas Usage Performance
    Only air and vacuum used for insulation / breaking, no F-gas including SF6
    Nbr. Of Units In Pkg.
    1
    Silicone-free
    No
    Warranty (In Months)
    18
    Air Pollution (M3) Manufacturing [A1-a3]
    8863.5
    Air Pollution (M3) Operational Energy Use [B6]
    58529
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]
    1150
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
    9211.6
    Global Warming (Kg.Equivalent.Co2) Distribution [A4]
    0.0858
    Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    83.413
    Net Use Of Fresh Water (M3) Manufacturing [A1-a3]
    1.3789
    Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
    16.245
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    1258.1
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    10969
    Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]
    1.2131
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
    22.393
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle
    10.019
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
    1248.1
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    10969
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    696.66
    Water Pollution (M3) Distribution [A4]
    14.11
    Water Pollution (M3) End Of Life [C1-c4]
    11.151
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Downloadable Protocolsthird party protocols, Uni-TE, Modbus, Modbus TCP/IP
    Vibration Resistance+/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-6, +/- 3.5 mm 5-9 Hz) IEC 60068-2-61 gn 9-150 Hz) IEC 60068-2-6
    Carbon Footprint Of The Distribution Phase [A4]0.0858, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0056052
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]707 kg CO2 eq., 707.41
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeHMI - Graphical display unit
    TraceabilityYes
    Average Life Duration7 year(s)
    Distribution Carbon Footprint0.0858
    Weee ApplicabilityFinished product
    Weee Product Category5
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label4
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Display Resolution320 x 240 pixels QVGA
    Enclosure MaterialPC/PBT and PAA
    Immunity To Microbreaks7 ms
    Memory Descriptionapplication memory 16 MBback up of data 64 kB
    Operating SystemHarmony
    Processor Frequency333 MHz
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductHarmony STO & STU
    Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
    Shock Resistance15 gn 11 msIEC 60068-2-27
    Software VersionEIME v5.8.1
    Supply Voltage Limits20.4-28.8 V
    Total Lifecycle Carbon Footprint802 kg CO2 eq.
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Pep CodeENVPEP2101003EN
    Pep Verification Date2021-01-01
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide a modular human machine interface with ethernet communication during 10 years and a 100% use rate at 10.5W.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh919.8
    Energy Model - Installation [A5]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; 220V; CN / Electricity mix; AC; 120V; US / Electricity Mix; AC; < 1kV; EU-27
    Width Nominal163 mm
    F-gas FreeOnly air and vacuum used for insulation / breaking, no F-gas including SF6
    Halogen-free StatusProduct contains halogen above thresholds
    Package Weight(Lbs)912.000 g
    Take-backNo
    Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]1.9012
    Air Pollution (M3) Distribution [A4]3.6499
    Air Pollution (M3) End Of Life [C1-c4]7.0796
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]1.2054
    Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]93.873
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]707.41
    Hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]15.873
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]1.1939
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]760.19
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]1.2115
    Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]1280.5
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]11665
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]696.66
    Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]10.019
    Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]1.2115
    Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]22.005
    Water Pollution (M3) Manufacturing [A1-a3]5736.9
    Water Pollution (M3) Operational Energy Use [B6]33699
    Customs Code8537109170

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -20-60 °C, -20-60 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Carbon Footprint
    801.5743652
    Circularity Profile
    ENVEOLI2101003EN
    Eu Rohs Directive
    Compliant By Exemption
    Ip Degree Of Protection
    IP20 IEC 60529 rear panel)IP65 IEC 60529 front panel)
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP2101003EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Operating Altitude<= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
    Halogene PerformanceProduct contains halogen above thresholds
    China Rohs RegulationX
    Silicon FreeNo
    Ambient Air Temperature For Operation0-50 °C
    Environmental DisclosureENVPEP2101003EN
    Halogen Content PerformanceProduct contains halogen above thresholds
    Nema Degree Of ProtectionNEMA 4X front panel indoor use)
    Packaging Without Single Use PlasticNo
    Relative Humidity0-85 % without condensation
    Pep Verification Date2021-01-01
    Type Of Verification For The PepIndependent internal review
