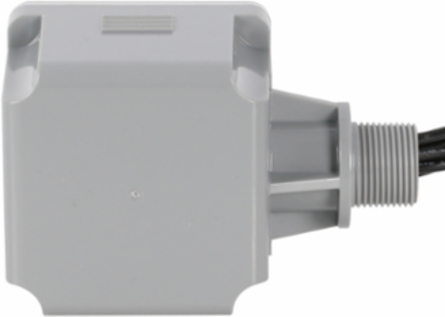

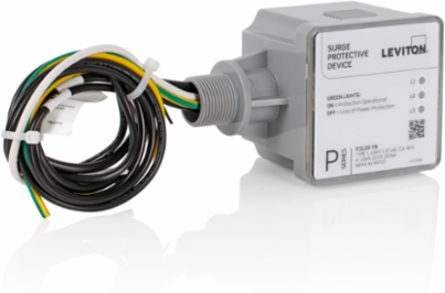

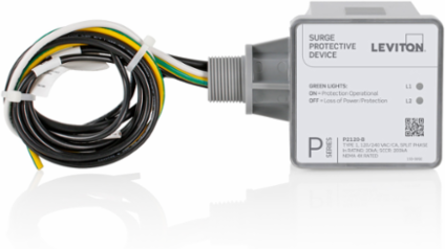

Leviton P2120-B Type 1 Surge Protective Device, 120/240 VAC, Split Phase
- MPN: P2120-B
- UPC: 078477583029
- PPN: LEV-P2120-B
CAD
$536.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
P Series Type 1 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 50kA per Mode/50kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (l n ) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 700, L-G: 1200, N-G: 600, Maximum Continuous Operating Voltage (MCOV): 180, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, Approximate Lead Length = 16",
Features
- Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
- Designed for RESIDENTIAL AND LIGHT COMMERCIAL APPLICATIONS, the P Series provides protection in single, split or three phase configurations
- Code Compliant – in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms Leviton’s P2120-B features a $25K Connected Equipment Warranty – click here for more information
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Performance Data
- Nominal Discharge Current Rating
- 20kA
- Remote Monitoring
- Form C Dry Contacts, 240V, 2A
- VPR L-L
- 1200V
- VPR N-G
- 600V
Protection ModesReduced Mode of Protection (L-N, N-G)
VPR L-G1200V
VPR L-N700V
Enclosure
- Color
- Gray

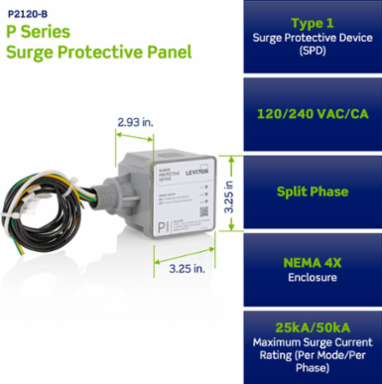

- Dimensions
- 5.02" x 2.93" x 3.25"
- Mount
- Surface
Connector3/4" NPT Side Mount Nipple
Enclosure MaterialPolycarbonate
NEMA RatingNEMA 4X
Standards, Certifications & Compliance
- ANSI/IEEE
- C-62.41.1-2002, C-62.41.2-2002 C-62.45-2002
- California Prop 65
- Compliant
- Reach
- Compliant
- UL
- 1449 5th Edition: 2021, cULus
CSACSA C22.2 No. 269.1-17, 2017-02
National Electric Code (NEC)285
RoHSCompliant
Product Features
- Disconnect Switch
- No
- Replaceable Modules
- No
- Surge Counter
- No
FilteringNo
SeriesP Series
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Humidity Range
- 0 to 95% Non-Condensing
Storage Temperature-49°F to 140°F (-45°C to 60°C)
Electrical Specifications
- Connection Type
- #12 AWG
- MCOV
- 180V
- Recommended Circuit Breaker Rating
- 20A
- Surge Technology
- Thermally Protected MOVs
- Voltage Configuration
- 120/240 VAC/CA Split Phase
Frequency50/60Hz
Maximum Surge Current, Per Mode (Per Phase)50kA, (50kA)
Short Circuit Current Rating200kA
Type1
