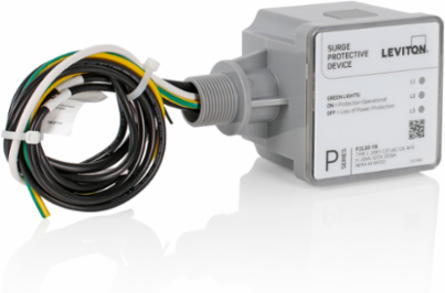

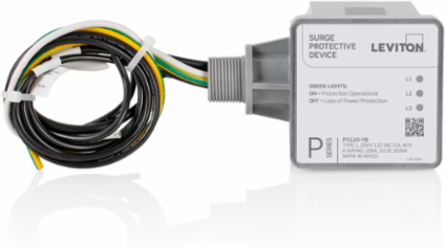

Leviton P3120-YB Type 1 Surge Protective Device, 208Y/120 VAC, Three Phase WYE
- MPN: P3120-YB
- PPN: LEV-P3120-YB
CAD
$739.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
P Series Type 1 Surge Panel, 208Y/120 VAC, Three Phase WYE, Max Surge Current Rating of 50kA per Mode/50kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (l n ) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 600, L-G: 1000, L-G: 1000, Maximum Continuous Operating Voltage (MCOV): 150V/300V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, Approximate Lead Length = 16"
Features
- Max Surge Current Rating (Surge Capacity)
- The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
- Higher values are better Nominal Discharge Current Rating (I n )
- Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
- Designed for RESIDENTIAL AND LIGHT COMMERCIAL APPLICATIONS, the P Series provides protection in single, split or three phase configurations
- Code Compliant – in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Performance Data
| Nominal Discharge Current Rating | 20kA |
|---|---|
| VPR L-G | 1000V |
| VPR L-N | 600V |
| Remote Monitoring | Form C Dry Contacts, 240V, 2A |
|---|---|
| VPR L-L | 1000V |
| VPR N-G | 600V |
Enclosure
| Color | Gray |
|---|---|

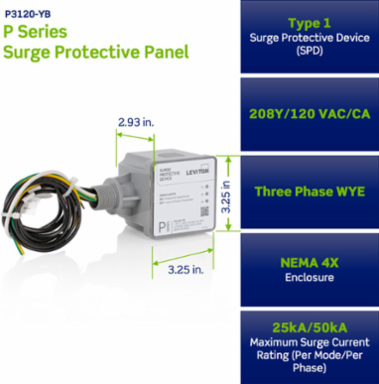

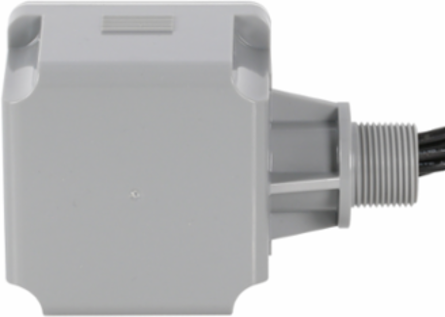

| Dimensions | 5.02" x 2.93" x 3.25" |
| Mount | Surface |
| Connector | 3/4" NPT Side Mount Nipple |
|---|---|
| Enclosure Material | Polycarbonate |
| NEMA Rating | NEMA 4X |
Standards, Certifications & Compliance
| ANSI/IEEE | C-62.41.1-2002, C-62.41.2-2002 C-62.45-2002 |
|---|---|
| California Prop 65 | Compliant |
| Reach | Compliant |
| UL | 1449 5th Edition: 2021, cULus |
| CSA | CSA C22.2 No. 269.1-17, 2017-02 |
|---|---|
| National Electric Code (NEC) | 285.0 |
| RoHS | Compliant |
Product Features
| Disconnect Switch | No |
|---|---|
| Replaceable Modules | No |
| Surge Counter | No |
| Filtering | No |
|---|---|
| Series | P Series |
Warranty
| Warranty | 5-Year Limited |
|---|
Environmental Specifications
| Humidity Range | 0 to 95% Non-Condensing |
|---|
| Storage Temperature | -49°F to 140°F (-45°C to 60°C) |
|---|
Electrical Specifications
| Connection Type | #12 AWG |
|---|---|
| MCOV | 150V |
| Recommended Circuit Breaker Rating | 20A |
| Surge Technology | Thermally Protected MOVs |
| Voltage Configuration | 208Y/120 VAC/CA WYE |
| Frequency | 50/60Hz |
|---|---|
| Maximum Surge Current, Per Mode (Per Phase) | 50kA, (50kA) |
| Short Circuit Current Rating | 200kA |
| Type | 1 |
