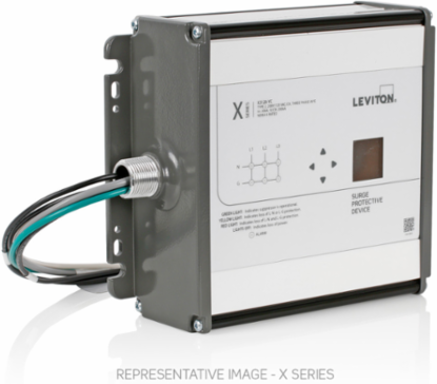

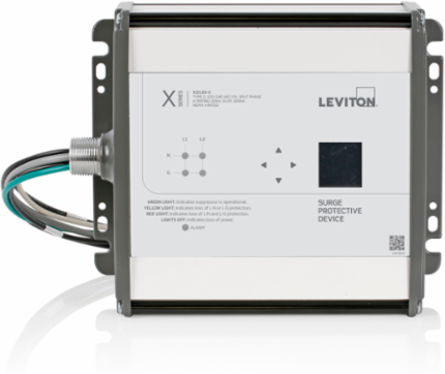

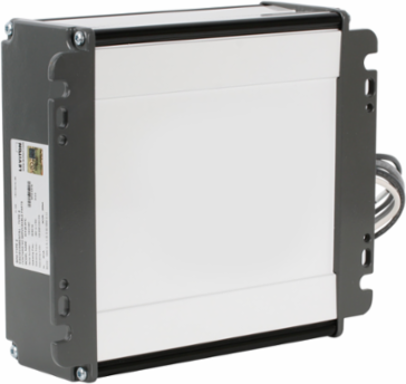

Leviton X2120-C Type 2 Surge Protective Device, 120/240 VAC, Split Phase
- MPN: X2120-C
- UPC: 078477000281
- PPN: LEV-X2120-C
CAD
$4088.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
X Series Type 2 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 200kA per Mode/400kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (l n ) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 600, L-G: 700, N-G: 600, L-L: 900, Maximum Continuous Operating Voltage (MCOV): 175, Plastic Enclosure, LED Status Monitoring, Audible Alarm, Surge/TOV Counter with Time & Date Stamp, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 20"
Features
- Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
- With high levels of protection and advanced features including surge counters and performance monitoring, the X Series are DESIGNED TO PROVIDE THE GREATEST LEVEL OF PROTECTION FOR HOMES OR FACILITIES where surge damage would lead to excessive loss or downtime on expensive machinery
- X Series Advanced TOV/Surge Counter logs event history, statistics, voltage & configuration, rating information, and more Code Compliant – in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms Leviton’s X2120-C features a $25K Connected Equipment Warranty – click here for more information
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Performance Data
- Nominal Discharge Current Rating
- 20kA
- Remote Monitoring
- Form C Dry Contacts, 240V, 2A
- VPR L-L
- 900.0
- VPR N-G
- 600.0
Protection ModesAll Modes of Protection (L-N, L-G, N-G, L-L)
VPR L-G700.0
VPR L-N700.0
Enclosure Specifications
- Color
- White

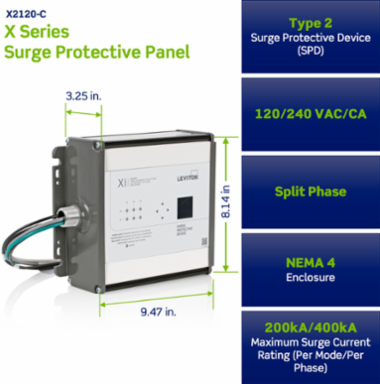

- Dimensions
- 9.47" x 8.14" x 3.25"
- Mount
- Surface
Connector3/4"-NPT Side Conduit Fitting
Enclosure MaterialExtruded Al
NEMA RatingNEMA 4
Enclosure
- Color
- White
- Dimensions
- 9.47" x 8.14" x 3.25"
- Mount
- Surface
Connector3/4"-NPT Side Conduit Fitting
Enclosure MaterialExtruded Al
NEMA RatingNEMA 4
Standards, Certifications & Compliance
- ANSI/IEEE
- C-62.41.1-2002, C-62.41.2-2002 C-62.45-2002
- California Prop 65
- Compliant
- UL
- 1449 5th Edition: 2021, cULus
CSACSA C22.2 No. 269.1-17, 2017-02
RoHSCompliant
Product Features
- Diagnostic and Status Monitoring
- LED Protection Status Monitoring and Audible Alarm
- Filtering
- Yes
- Series
- X Series
Disconnect SwitchNo
Replaceable ModulesNo
Surge CounterSurge and TOV Counter
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Humidity Range
- 0 to 95% Non-Condensing
Storage Temperature-31°F to 167°F (-35°C to 75°C)
Electrical Specifications
- Frequency
- 0-60Hz
- Maximum Surge Current, Per Mode (Per Phase)
- 200kA, (400kA)
- Short Circuit Current Rating
- 200kA
- Type
- 2
MCOV175V
Recommended Circuit Breaker Rating20A
Surge TechnologyThermally Protected MOVs
Voltage Configuration120/240 VAC/CA Split Phase
