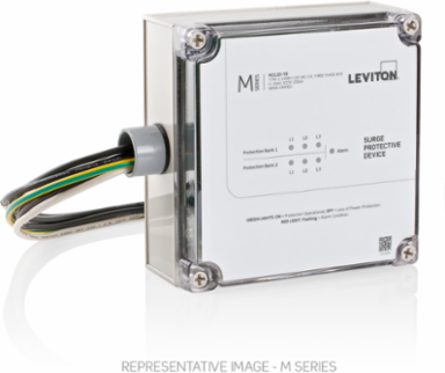

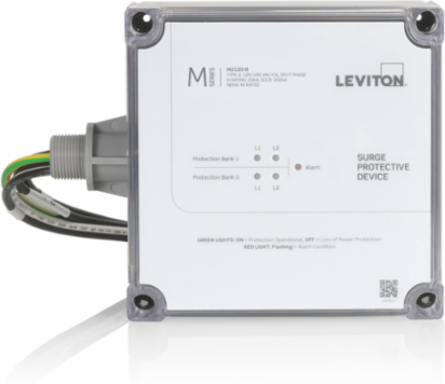

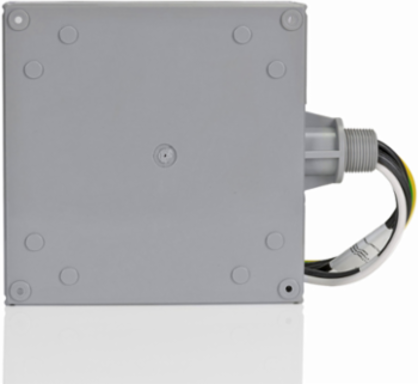

Leviton M2120-B Type 2 Surge Protective Device, 120/240 VAC, Split Phase
- MPN: M2120-B
- UPC: 078477583050
- PPN: LEV-M2120-B
CAD
$2581.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
M Series Type 2 Surge Panel, 120/240 VAC, Split Phase, Max Surge Current Rating of 130kA per Mode/260kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (l n ) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 700, L-G: 700, N-G: 700, L-L: 1200, Maximum Continuous Operating Voltage (MCOV): Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 28"
Features
- Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
- Ideal for POINT-OF-ENTRY or MAIN SERVICE ENTRANCE INSTALLATIONS, the M series offers greater protection in a wide variety of voltage configurations
- Code Compliant – in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms Leviton’s M2120-B features a $25K Connected Equipment Warranty – click here for more information
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Performance Data
- Nominal Discharge Current Rating
- 20kA
- Remote Monitoring
- Form C Dry ContactS, 240V, 2A
- VPR L-L
- 1200.0
- VPR N-G
- 600.0
Protection ModesAll Modes of Protection (L-N, L-G, N-G)
VPR L-G800.0
VPR L-N700.0
Enclosure Specifications
- Color
- Gray

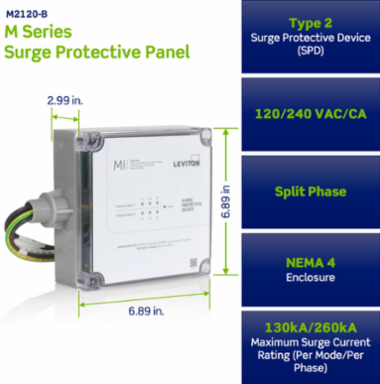

- Dimensions
- 7.69" x 2.99" x 6.89"
- Mount
- Surface
Connector3/4" straight conduit fitting
Enclosure MaterialPolycarbonate
NEMA RatingNEMA 4
Enclosure
- Color
- Gray
- Dimensions
- 7.69" x 2.99" x 6.89"
- Mount
- Surface
Connector3/4" straight conduit fitting
Enclosure MaterialPolycarbonate
NEMA RatingNEMA 4
Standards, Certifications & Compliance
- ANSI/IEEE
- C-62.41.1-2002, C-62.41.2-2002 C-62.45-2002
- California Prop 65
- Compliant
- Series
- M Series
CSACSA C22.2 No. 269.1-17, 2017-02
RoHSCompliant
UL1449 5th Edition: 2021, cULus
Product Features
- Diagnostic and Status Monitoring
- LED Protection Status Monitoring and Audible Alarm
- Filtering
- Yes
- Surge Counter
- No
Disconnect SwitchNo
Replaceable ModulesNo
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Humidity Range
- 0 to 95% Non-Condensing
Storage Temperature-49°F to 140°F (-45°C to 60°C)
Electrical Specifications
- Connection Type
- #10 AWG
- MCOV
- 180V
- Recommended Circuit Breaker Rating
- 30A
- Surge Technology
- Thermally Protected MOVs
- Voltage Configuration
- 120/240 VAC/CA Split Phase
Frequency50/60Hz
Maximum Surge Current, Per Mode (Per Phase)130kA, (260kA)
Short Circuit Current Rating200kA
Type2
