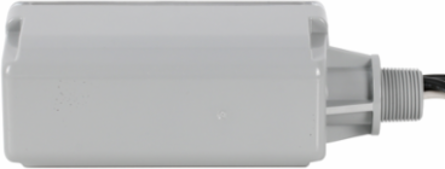

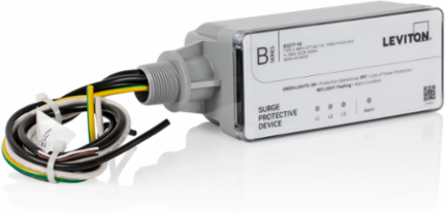

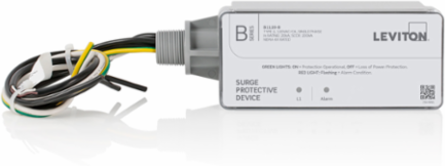

Leviton B1120-B Type 2 Surge Protective Device, 120 VAC, Single Phase
- MPN: B1120-B
- UPC: 078477583036
- PPN: LEV-B1120-B
CAD
$858.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
B Series Type 2 Surge Panel, 120 VAC, Single Phase, Max Surge Current Rating of 65kA per Mode/130kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (l n ) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 700, L-G: 700, N-G: 700, Maximum Continuous Operating Voltage (MCOV): Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 18", White
Features
- Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
- Ideal for the branch panel in COMMERCIAL AND INDUSTRIAL APPLICATIONS and the main panel in light commercial applications, the B Series is versatile in its usage
- Code Compliant – in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms Leviton’s B1120-B features a $25K Connected Equipment Warranty – click here for more information
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Performance Data
- Nominal Discharge Current Rating
- 20kA
- Remote Monitoring
- Form C Dry Contacts, 240V, 2A
- VPR L-N
- 700.0
Protection ModesAll Modes of Protection (L-N, L-G, N-G)
VPR L-G700.0
VPR N-G700.0
Enclosure Specifications
- Color
- Gray

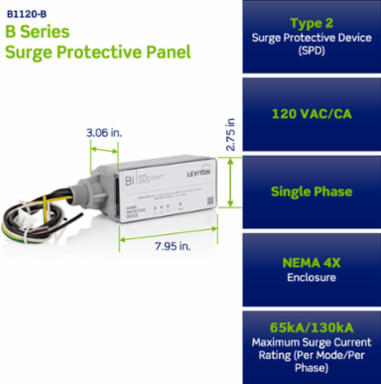

- Dimensions
- 7.95" x 3.06" x 2.75"
- Mount
- Surface
Connector3/4" NPT Side Mount Nipple
Enclosure MaterialPolycarbonate
NEMA RatingNEMA 4X
Enclosure
- Color
- Gray
- Dimensions
- 7.95" x 3.06" x 2.75"
- Mount
- Surface
Connector3/4" NPT Side Mount Nipple
Enclosure MaterialPolycarbonate
NEMA RatingNEMA 4X
Product Features
- Diagnostic and Status Monitoring
- LED Protection Status Monitoring and Audible Alarm
- Filtering
- Yes
- Surge Counter
- No
Disconnect SwitchNo
Replaceable ModulesNo
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Humidity Range
- 0 to 95% Non-Condensing
Storage Temperature-49°F to 140°F (-45°C to 60°C)
Electrical Specifications
- Connection Type
- #12 AWG
- MCOV
- 180V
- Recommended Circuit Breaker Rating
- 20A
- Surge Technology
- Thermally Protected MOVs
- Voltage Configuration
- 120 VAC/CA Single Phase
Frequency50/60Hz
Maximum Surge Current, Per Mode (Per Phase)65kA, (130kA)
Short Circuit Current Rating200kA
Type2
