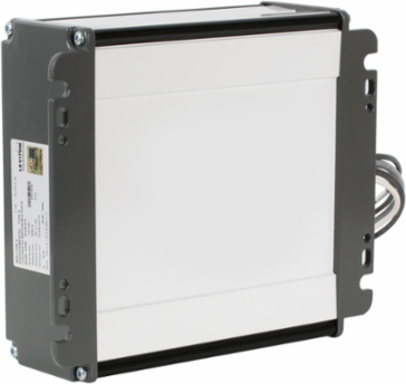

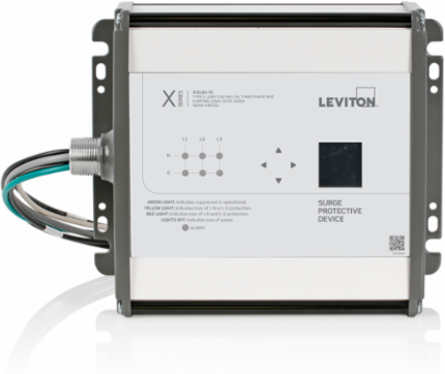

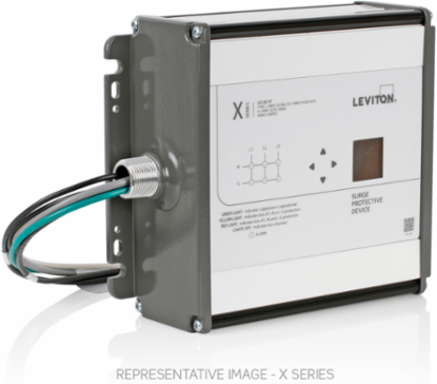

Leviton X3120-YC Type 2 Surge Protective Device, 208Y/120 VAC, Three Phase WYE
- MPN: X3120-YC
- UPC: 078477583098
- PPN: LEV-X3120-YC
CAD
$4991.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
X Series Type 2 Surge Panel, 208Y/120 VAC, Three Phase WYE, Max Surge Current Rating of 200kA per Mode/400kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (l n ) Rating, NEMA 4 Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-N: 600, L-G: 600, N-G: 600, L-L: 1000, Maximum Continuous Operating Voltage (MCOV): 150V/300V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, Surge/TOV Counter with Time & Date Stamp, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 20"
Features
- Max Surge Current Rating (Surge Capacity)
- The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
- Higher values are better Nominal Discharge Current Rating (I n )
- Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
- With high levels of protection and advanced features including surge counters and performance monitoring, the X Series are DESIGNED TO PROVIDE THE GREATEST LEVEL OF PROTECTION FOR HOMES OR FACILITIES where surge damage would lead to excessive loss or downtime on expensive machinery
- X Series Advanced TOV/Surge Counter logs event history, statistics, voltage & configuration, rating information, and more
- Code Compliant – in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Performance Data
- Nominal Discharge Current Rating
- 20kA
- VPR L-G
- 600.0
- VPR L-N
- 600.0
Remote MonitoringForm C Dry Contacts, 240V, 2A
VPR L-L1000.0
VPR N-G600.0
Enclosure
- Color
- White
- Dimensions

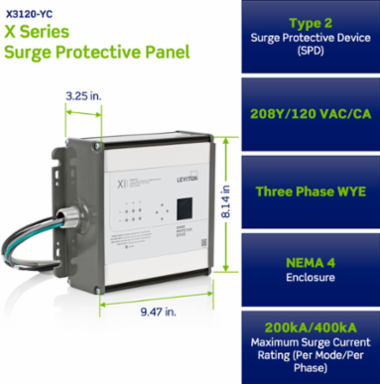

- 9.47" x 8.14" x 3.25"
- Mount
- Surface
Connector3/4"-NPT Side Conduit Fitting
Enclosure MaterialExtruded Al
NEMA RatingNEMA 4
Standards, Certifications & Compliance
- ANSI/IEEE
- C-62.41.1-2002, C-62.41.2-2002 C-62.45-2002
- California Prop 65
- Compliant
- UL
- 1449 5th Edition: 2021, cULus
CSACSA C22.2 No. 269.1-17, 2017-02
RoHSCompliant
Product Features
- Disconnect Switch
- No
- Replaceable Modules
- No
- Surge Counter
- Surge and TOV Counter
FilteringYes
SeriesX Series
Warranty
- Warranty
- 10-Year Limited
Environmental Specifications
- Humidity Range
- 0 to 95% Non-Condensing
Storage Temperature-31°F to 167°F (-35°C to 75°C)
Electrical Specifications
- Frequency
- 0-60Hz
- Maximum Surge Current, Per Mode (Per Phase)
- 200kA, (400kA)
- Short Circuit Current Rating
- 200kA
- Type
- 2
MCOV150V
Recommended Circuit Breaker Rating20A
Surge TechnologyThermally Protected MOVs
Voltage Configuration208Y/120 VAC/CA WYE
