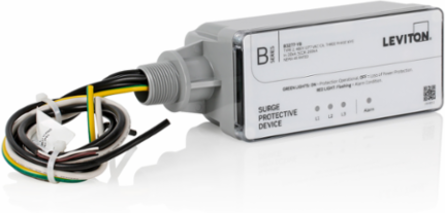

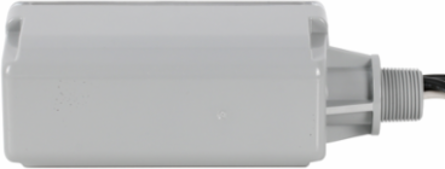

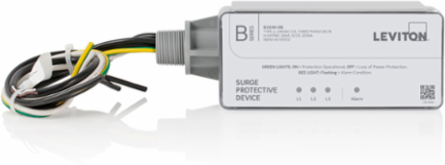

Leviton B3240-DB Type 2 Surge Protective Device, 240 VAC, Three Phase Delta
- MPN: B3240-DB
- UPC: 078477583128
- PPN: LEV-B3240-DB
CAD
$1010.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
B Series Type 2 Surge Panel, 240 VAC, Three Phase Delta, Max Surge Current Rating of 65kA per Mode/130kA per Phase, 200kA Short Circuit Current Rating (SCCR), 20kA I-nominal (l n ) Rating, NEMA 4X Rated Enclosure, Thermally Protected MOVs, VPR Performance Data = L-G: 1000, L-L: 1200, Maximum Continuous Operating Voltage (MCOV): 275V, Plastic Enclosure, LED Status Monitoring, Audible Alarm, UL 1449 Listed, UL 1283 EMI/RFI Filtering, Approximate Lead Length = 18"
Features
- Max Surge Current Rating (Surge Capacity)
- The maximum amount of current the device is capable of diverting to ground during a single surge event without performance degradation of more than 10%
- Higher values are better Nominal Discharge Current Rating (I n )
- Leviton surge protective devices (SPDs) divert damaging voltage transients, or surges, away from electronic equipment
- Ideal for the branch panel in COMMERCIAL AND INDUSTRIAL APPLICATIONS and the main panel in light commercial applications, the B Series is versatile in its usage
- Code Compliant – in 2020, Article 230.67 of the National Electrical Code® (NEC) updates required all services supplying dwelling units to be provided with a surge protective device (SPD), as an integral part of equipment or located immediately adjacent. The SPD must be a Type 1 or Type 2 SPD . The 2023 code expanded the requirements to dormitory units, guest rooms and guest suites of hotels and motels, and areas of nursing homes and limited-care facilities used exclusively as patient sleeping rooms
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Performance Data
- Nominal Discharge Current Rating
- 20kA
- VPR L-G
- 1000.0
Remote MonitoringForm C Dry Contacts, 240V, 2A
VPR L-L1200.0
Enclosure
- Color
- Gray

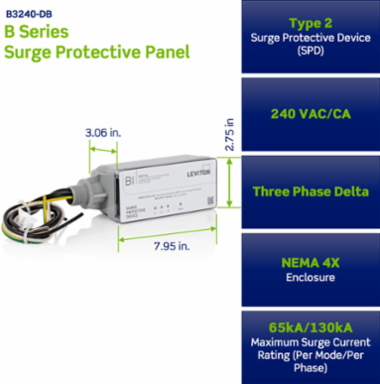

- Dimensions
- 7.95" x 3.06" x 2.75"
- Mount
- Surface
Connector3/4" NPT Side Mount Nipple
Enclosure MaterialPolycarbonate
NEMA RatingNEMA 4X
Standards, Certifications & Compliance
- ANSI/IEEE
- C-62.41.1-2002, C-62.41.2-2002 C-62.45-2002
- California Prop 65
- Compliant
- Series
- B Series
CSACSA C22.2 No. 269.1-17, 2017-02
RoHSCompliant
UL1449 5th Edition: 2021, cULus
Product Features
- Disconnect Switch
- No
- Replaceable Modules
- No
FilteringYes
Surge CounterNo
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Humidity Range
- 0 to 95% Non-Condensing
Storage Temperature-49°F to 140°F (-45°C to 60°C)
Electrical Specifications
- Connection Type
- #12 AWG
- MCOV
- 275V
- Recommended Circuit Breaker Rating
- 20A
- Surge Technology
- Thermally Protected MOVs
- Voltage Configuration
- 240 VAC/CA DELTA
Frequency50/60Hz
Maximum Surge Current, Per Mode (Per Phase)65kA, (130kA)
Short Circuit Current Rating200kA
Type2
