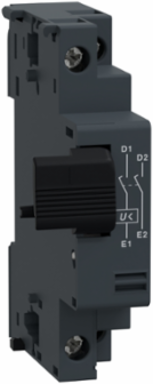

Schneider Electric GVAX225 TeSys Deca Undervoltage Release, 220-240V AC, 18mm Width
- MPN: GVAX225
- PPN: SCH-GVAX225
CAD
$135.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys GV electrical trip, MN undervoltage release, 220-240V AC 50Hz, for motor circuit breakers GV2ME used in safety-related systems. It trips the circuit breaker when the control voltage drops below 0.35 Uc, possible opening between 0.35-0.7 Uc. Closing of the circuit breaker is only possible when the control voltage is applied in the range 0.85-1.1 Uc. To be mounted on right-hand side of the circuit breaker, connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, INRS, VDE 0113).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth66 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Control Circuit Voltage Limits
- 0.85...1.1 Un
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- Tightening Torque
- < 1.4 N.m screw clamp terminals, < 1.4 N.m screw clamp terminals< 1.4 N.m screw clamp terminals, < 1.4 N.m screw clamp terminals
- Connections - Terminals
- screw clamp terminals 2 0.75-2.5 mm²flexible without cable end, screw clamp terminals 2 0.75-1.5 mm²flexible with cable endscrew clamp terminals 1 1-2.5 mm²solid, screw clamp terminals 2 1-2.5 mm²solid, screw clamp terminals 1 0.75-2.5 mm²flexible without cable end, screw clamp terminals 1 0.75-1.5 mm²flexible with cable end
- Local Publishable Date
- 2025-05-31
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- GVAX
- Inrush Power In W
- 8 W
- Operating Time
- 10...15 ms IEC 60947-1
- Product Or Component Type
- safety undervoltage trip
- Returnability
- No
- Threshold Tripping Voltage
- 0.7...0.35 Un
- Control Circuit Voltage 14
- 220...240 V AC 50 Hz
- Height Nominal
- 89 mm
- [Uc] Control Circuit Voltage
- 220...240 V AC 50 Hz
- Hold-in Power Consumption In W
- 1.1-1.1 W
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Range Of ProductTeSys GV2, TeSys Deca
[Ui] Rated Insulation Voltage690 V AC IEC 60947-1, 600 V AC UL 60947-4-1, 600 V AC CSA C22.2 No 60947-4-1
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2207006
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGVAX
Inrush Power In Va12-12 VA AC
Mechanical Durability30000 cycles
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 10
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2207006EN
Width Nominal18 mm
Hold-in Power Consumption In Va3.5-3.5 VA AC
On-load Factor100 %
Package Weight(Lbs)121.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2207006EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2207006EN
General Attributes
- Range Of Product
- TeSys GV2, TeSys Deca
Product Or Component Typesafety undervoltage trip
ETIM
- ETIM 8
- EC001022
ETIM 9EC001022
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
