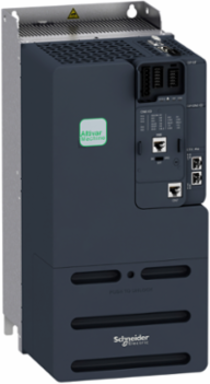

Schneider Electric ATV340D11N4E Altivar 340 Variable Speed Drive, 11 kW, 3-Phase, Ethernet, IP20
Schneider Electric ATV340D11N4E Altivar 340 Variable Speed Drive, 11 kW, 3-Phase, Ethernet, IP20
- MPN: ATV340D11N4E
- PPN: SCH-ATV340D11N4E
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3027.72/ EA
Description
This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 11kW / 15hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 °C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 9.5kg and its dimensions are, 180mm wide, 385mm high, 249mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TÜV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS relating to environmental protection.
Specifications
Complementary
- Prospective Line Isc
- 22 kA
- Line Current
- 28.8 A 380 V normal duty) || 23.0 A 480 V normal duty) || 34.7 A 380 V heavy duty) || 27.7 A 480 V heavy duty)
- Analogue Output Type
- software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
- Electrical Connection
- screw terminal 0.2...2.5 mm² control || screw terminal 4...25 mm² line side || screw terminal 4...25 mm² DC bus || screw terminal 2.5...25 mm² motor
- Maximum Switching Current
- relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2C resistive, cos phi = 1 5 A 250 V AC || relay output R2C resistive, cos phi = 1 5 A 30 V DC || relay output R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R2C inductive, cos phi = 0.4 7 ms 2 A 30 V DC
- Apparent Power
- 22.7 kVA 480 V normal duty) || 23 kVA 480 V heavy duty)
- With Safety Function Safe Direction (Sdi)
- false
- Relay Output Type
- relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles
- Maximum Transient Current
- 35.2 A 60 s normal duty) || 36 A 60 s heavy duty) || 43.2 A 2 s normal duty) || 43 A 2 s heavy duty)
- Motor Slip Compensation
- can be suppressed || automatic whatever the load || not available in permanent magnet motor law || adjustable
- With Safety Function Safe Position (Sp)
- false
- With Safety Function Safely Limited Position (Slp)
- false
- Number Of Addresses
- 1-247
- With Sft Fct Safe Stop 2 (Ss2)
- false
- Width
- 180.0 mm
- Depth
- 249.0 mm
- Electrical Connection
- control screw terminal 0.2...2.5 mm² AWG 24...AWG 12 || line side screw terminal 4...25 mm² AWG 10...AWG 3 || DC bus screw terminal 4...25 mm² AWG 10...AWG 3 || motor screw terminal 2.5...25 mm² AWG 12...AWG 3
- With Safety Function Safe Brake Management (Sbc/Sbt)
- true
- Acceleration And Deceleration Ramps
- S, U or customized || linear adjustable separately from 0.01...9999 s
- Base Load Current At High Overload
- 24.0 A
- With Safety Function Safe Speed Monitor (Ssm)
- false
- With Safety Function Safe Torque Off (Sto)
- true
- Base Load Current At Low Overload
- 32.0 A
- Pollution Degree
- 2 IEC 61800-5-1
- Physical Interface
- 2-wire RS 485
- Discrete Input Logic
- 16 preset speeds
- With Safety Function Safe Programmable Logic
- false
- Output Voltage
- <= power supply voltage
- Braking To Standstill
- by DC injection
- Protection Type
- thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent between motor phases drive || short-circuit between motor phase and earth drive || short-circuit between motor phases drive || motor phase loss drive || DC Bus overvoltage drive || line supply overvoltage drive || line supply undervoltage drive || input supply loss drive || exceeding limit speed drive || break on the control circuit drive
- Synchronous Motor Control Profile
- permanent magnet motor || reluctance motor
Power Dissipation In Wnatural convection 13 W 380 V 4 kHz heavy duty) || forced convection 241 W 380 V 4 kHz heavy duty) || natural convection 16 W 380 V 4 kHz normal duty) || forced convection 311 W 380 V 4 kHz normal duty)
Line Current34.7 A 380 V without line choke heavy duty) || 27.7 A 480 V without line choke heavy duty) || 33.9 A 380 V with external line choke normal duty) || 27.2 A 480 V with external line choke normal duty) || 35.1 A 380 V with external line choke heavy duty) || 27.8 A 480 V with external line choke heavy duty)
Discrete Output Typeprogrammable output DQ1, DQ2 30 V DC 100 mA
Asynchronous Motor Control Profileconstant torque standard || optimized torque mode || variable torque standard
4 Quadrant Operation Possibletrue
Net Weight9.5 kg
Type Of Polarizationno impedance
Switching Frequency2...16 kHz adjustable || 4...16 kHz with derating factor
Analogue Input Number2
Discrete Output Number2.0
Method Of Accessslave Modbus RTU || slave Modbus TCP
With Safety Function Safe Operating Stop (Sos)false
Discrete Input Number5
With Safety Function Safe Stop 1 (Ss1)true
Transmission Rate4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
Analogue Input TypeAI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31.5 kOhm 12 bits
Maximum Output Frequency0.599 kHz
Height385.0 mm
Maximum Output Voltage480 V
Transmission FrameRTU
Relay Output Number2
Data Format8 bits, configurable odd, even or no parity
Connector Type3 RJ45
Analogue Output Number2
Minimum Switching Currentrelay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC
Continuous Output Current32 A 4 kHz normal duty || 24 A 4 kHz heavy duty
Brake Chopper Integratedtrue
Nominal Switching Frequency4 kHz
Discrete Input TypePTI programmable as pulse input 0-30 kHz, 24 V DC 30 V) || DI1...DI5 safe torque off, 24 V DC 30 V)3.5 kOhm || programmable
With Safety Function Safely Limited Speed (Sls)true
Offer Sustainability
- Mercury Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Upgradeability
- Upgraded components available
- Environmental Disclosure
- ENVPEP1609006EN
- Circularity Profile
- ENVEOLI1609006EN
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Rohs Exemption InformationYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- UL || CSA || TÜV || EAC || CTick
- Standards
- IEC 61800-3 || IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C
- Permitted Relative Humidity (During Operation)
- class 3K5 according to EN 60721-3
- Overvoltage Category
- class III
- Maximum Acceleration Under Shock Impact (During Operation)
- 70 m/s² at 22 ms
- Electromagnetic Compatibility
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6
- Volume Of Cooling Air
- 128.0 m3/h
- Maximum Acceleration Under Vibrational Stress (During Operation)
- 5 m/s² at 9...200 Hz
- Ambient Air Temperature For Storage
- -40-70 °C
- Isolation
- between power and control terminals
- Operating Position
- vertical +/- 10 degree
Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...9 Hz
Regulation Loopadjustable PID regulator
Operating Altitude<= 3000 m with current derating above 1000m
Environmental Class (During Operation)class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
Pollution Degree2
Ambient Air Temperature For Operation-15-50 °C without derating vertical position) || 50-60 °C with derating factor vertical position)
MarkingCE
Noise Level55.6 dB
Type Of Coolingforced convection
Assembly Stylewith heat sink
Ambient Air Transport Temperature-40-70 °C
Specifications
- Variant
- standard version
- Ip Degree Of Protection
- IP20
- Communication Port Protocol
- Modbus TCP || EtherNet/IP || Modbus serial
- Product Specific Application
- machine
- Supply Frequency
- 50...60 Hz +/- 5 %
- Motor Power Kw
- 15 kW normal duty || 11 kW heavy duty
- Mounting Mode
- cabinet mount
Product Or Component Typevariable speed drive
Network Number Of Phases3 phases
Nominal Output Current24.0 A
Motor Power Hp20 hp normal duty || 15 hp heavy duty
Range Of ProductAltivar Machine ATV340
[Us] Rated Supply Voltage380...480 V - 15...10 %
Emc Filterclass C3 EMC filter integrated
