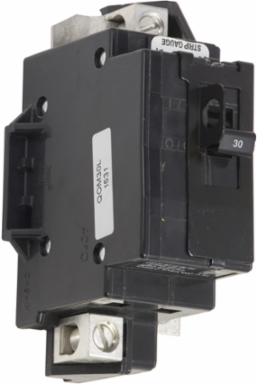

Square D QOM30L QO 30A 2-Pole Circuit Breaker, 120/240VAC, 10kA, Bolt-On Mount
Square D QOM30L QO 30A 2-Pole Circuit Breaker, 120/240VAC, 10kA, Bolt-On Mount
- MPN: QOM30L
- UPC: 785901114840
- PPN: SCH-QOM30L
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$168.72/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO main breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches.
Specifications
- Current Rating
- 30 A
- Breaking Capacity
- 10 kA 120/240 V AC 50/60 Hz
- Number of Phases
- 1
- Electrical Connection
- Lugs
- Tightening Torque
- 6 N.m
- Frame Size
- QOM1
- Compliance
- UL Listed, CSA
- Mercury Free
- Yes
- Country of Origin
- Mexico
Voltage120/240 V AC
Number of Poles2
Mounting TypeBolt-on
Wire SizeAWG 12 to 2/0 copper or aluminum
Net Weight0.576 kg
Circuit Breaker TypeStandard
Ambient Air Temperature40 °C
EU RoHS DirectiveCompliant with Exemptions
