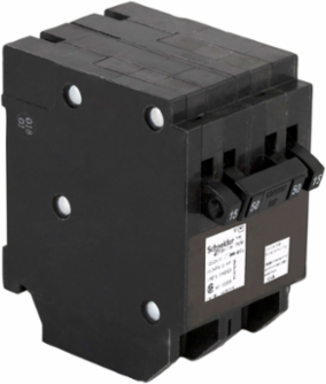

Schneider Electric CHOMT1515250 Quad Tandem Circuit Breaker, 2 x 15A & 1 x 50A, 120/240V AC, 10kA
- MPN: CHOMT1515250
- UPC: 785901914013
- PPN: SCH-CHOMT1515250
CAD
$124.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This CHOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 50 A at 120/240 VAC and the single pole breakers are rated 15 A and 15 A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or 12 AWG to 6 AWG aluminum wire. The single pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are CSA certified.
Features
- Custom-engineered as a "space-saver" sub-component, this quad tandem circuit breaker allows homeowners and electrical contractors to expand their branch wiring network without upgrading to a larger panelboard. By nesting four independent circuit paths into a highly compressed frame, it maximizes circuit density when panel space is limited.
- Designed for multi-load distribution, this unique quad layout combines two single-pole 15 Amp breakers on the outer flanks with one double-pole 50 Amp breaker tied across the center. This lets you simultaneously run two independent 120V household branch utility loops alongside one heavy-duty 240V dedicated appliance or EV charging circuit.
- Belonging exclusively to the Homeline Canadian (CHOM/CHOMT) product family, this unit features a specialized plug-on mounting footprint. It is built specifically to snap onto the bus bar of standard Canadian Square D Homeline load centers, occupying just two physical panel spaces while doubling the available circuit capacity.
- Operating at a standard residential rating of 120/240 VAC with a 10 kA short-circuit interrupting rating (AIR), this thermal-magnetic breaker is fully Heating, Air Conditioning, and Refrigeration (HACR) rated. The robust center screw-clamp terminals are designed to safely anchor copper or aluminum feed wires ranging from 12 AWG to 6 AWG (Al)/(Cu).
- Featuring Schneider's signature fast-acting, reliable circuit protection, this quad breaker ensures rapid overcurrent and short-circuit response times. It is fully CSA certified, guaranteeing that your updated panel layout seamlessly complies with strict local electrical codes and passes home renovation or utility service safety inspections.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- quad
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description2P || 1P
[In] Rated Current15 A || 50 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 12...AWG 6 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
