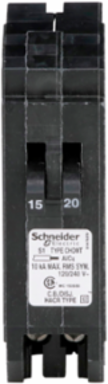

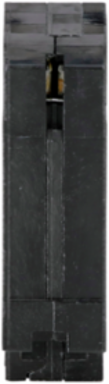

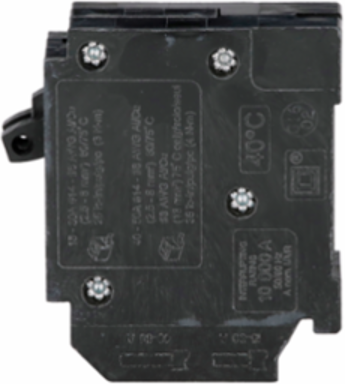

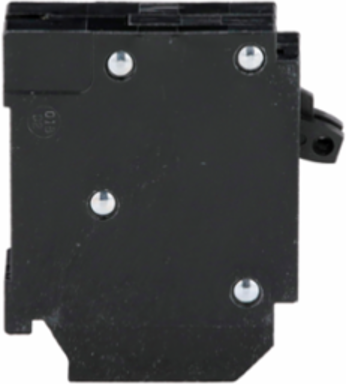

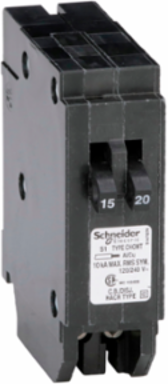

Schneider Electric CHOMT1520 Homeline Tandem Circuit Breaker 15A/20A 120/240V 10kA AIR
- MPN: CHOMT1520
- UPC: 785901897347
- PPN: SCH-CHOMT1520
CAD
$40.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This CHOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole CHOMT plug in circuit breaker provides an individual switching and tripping action. This tandem CHOMT miniature tandem breaker with plug in mounting is rated 15 A and 20 A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. CHOMT tandem breakers are CSA certified.
Features
- The CHOMT1520 "Twin" breaker provides two independent poles in the space of a single 3/4-inch slot, allowing you to expand your system without upgrading to a larger, expensive load center. It is the ideal solution for adding a dedicated 15A or 20A circuit for a bedroom or small appliance when your HomelineTM panel has reached its physical capacity.
- This specialized tandem breaker features one 15-Amp pole and one 20-Amp pole on a single device, catering to the mixed-load requirements often found in modern residential renovations. It eliminates the guesswork of matching branch circuit needs, providing a 15A feed for standard lighting and a 20A feed for power-hungry kitchen or workshop outlets simultaneously.
- Specifically engineered for the Canadian HomelineTM (CHOM) series, this breaker features the industry-leading plug-on design for a fast, tool-free installation. The high-pressure "jaw" connection ensures a low-resistance path to the bus bar, reducing heat buildup and preventing the nuisance tripping common in generic or poorly fitted aftermarket alternatives.
- Utilizing a sophisticated dual-action mechanism, the CHOMT1520 provides instant protection against short circuits and time-delay protection against sustained overloads. This ensures your home s wiring is shielded from thermal damage while allowing for the brief current in-rush typically seen when starting vacuum cleaners or power tools.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- tandem
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description1P
[In] Rated Current20 A || 15 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 1
Awg GaugeAWG 14...AWG 8 aluminum/copper
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
