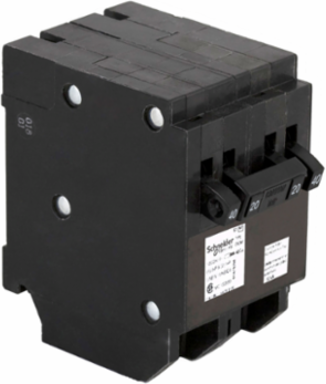

Schneider Electric CHOMT2020240 Quad tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 40A, 120/240VAC, 10kA AIR, plug in, UL
Schneider Electric CHOMT2020240 Quad tandem circuit breaker, Homeline, 2 x 1 pole at 20A, 1 x 2 pole at 40A, 120/240VAC, 10kA AIR, plug in, UL
- MPN: CHOMT2020240
- UPC: 785901914051
- PPN: SCH-CHOMT2020240
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$60.25/ EA
Description
CHOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This CHOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 40 A at 120/240 VAC and the single pole breakers are rated 20 A and 20 A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or 12 AWG to 6 AWG aluminum wire. The single pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are CSA certified.
Specifications
Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- quad
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description2P || 1P
[In] Rated Current40 A || 20 A
[Ue] Rated Operational Voltage120/240 V AC
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 12...AWG 6 aluminum/copper
