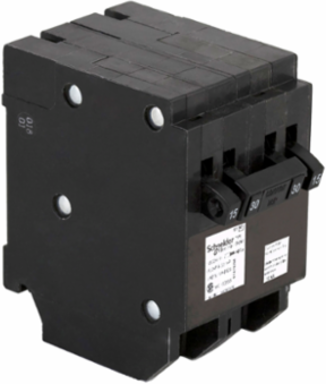

Schneider Electric CHOMT1515230 Quad Tandem Circuit Breaker, 2 x 15A & 1 x 30A, 120/240V, 10kA AIR
- MPN: CHOMT1515230
- UPC: 785901913986
- PPN: SCH-CHOMT1515230
CAD
$57.51
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CHOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This CHOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two CHOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 30 A at 120/240 VAC and the single pole breakers are rated 15 A and 15 A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are CSA certified.
Features
- The CHOMT1515230 is a high-density "Quad" circuit breaker from the Schneider Electric Homeline (CHOM) series. It is engineered to provide four circuits while occupying only two 1-inch spaces on the bus bar. This makes it a specialized solution for expanding a residential panel that has no remaining physical slots.
- This specific model number defines the amperage of the four circuits: Outer Poles: Two independent 15-Amp single-pole breakers (for 120V general-purpose lighting or outlets). Inner Poles: One 30-Amp double-pole breaker (for a 240V appliance). This setup is commonly used to add a 30A load (like an electric water heater or a small central AC unit) while simultaneously providing two standard 15A circuits.
- This breaker is designed exclusively for Schneider Electric Homeline (CHOM) load centers. It features a "rejection" mounting clip on the bottom, meaning it will only install in specific slots of a "Tandem-Ready" panel (indicated by a notch in the bus bar). It is not compatible with Square D QO, Eaton, Siemens, or GE panels.
- The two inner 30-Amp poles are physically and internally linked. If an overload or fault occurs on either side of the 240V circuit, both inner poles trip simultaneously to prevent "single-phasing." The two outer 15A handles operate independently, ensuring that a fault on a bedroom light circuit won't shut down your 30A water heater.
- The CHOMT1515230 is fully CSA Certified and compliant with the Canadian Electrical Code (CEC). It features high-quality terminals that accept copper or aluminum wire. With a 10,000 AIR (Amperes Interrupting Rating), it offers professional-grade safety and reliability for Canadian residential electrical systems and home renovation projects.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- quad
- Range Of Product
- Homeline
- Electrical Connection
- screw clamp terminals
- Product Or Component Type
- miniature circuit-breaker
Mounting Modeplug-on
Short-Circuit Current10 kA
Poles Description2P || 1P
[In] Rated Current30 A || 15 A
[Ue] Rated Operational Voltage120/240 V AC
Complementary
- Number Of Spaces Required
- 2
Awg GaugeAWG 14...AWG 8 aluminum/copper
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- CSA
Ambient Air Temperature For Operation40 °C
