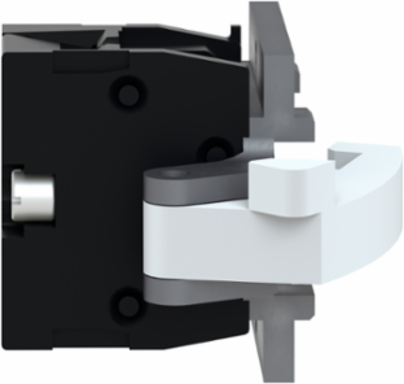

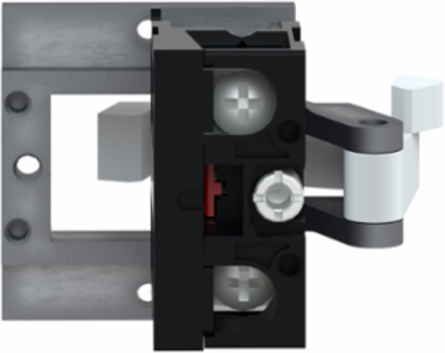

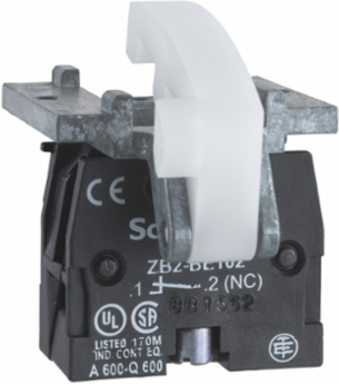

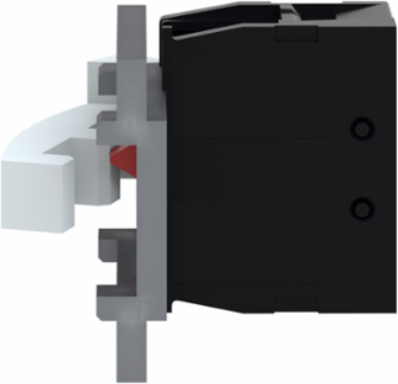

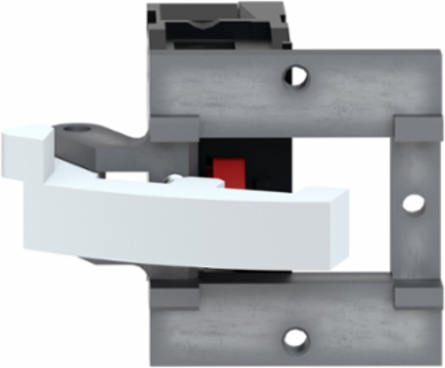

Schneider Electric XACS105 Harmony XAC Spring Return Contact Block, 1 NO + 1 NC, Base Mounting

MPN: XACS105
PPN: SCH-XACS105

$36.22

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XACS105 is a spring return contact block - 1 NC + 1 NO - base mounting. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia, Mexico

Complementary Attributes

Maximum Resistance Across Terminals	25 MOhm

Rated Operational Power In W	40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contact Code Designation	A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AA600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix AQ600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Terminals Description Iso N°1	(23-24)NO, (11-12)NC, (23-24)NO, (11-12)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0420587413
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.2 kg CO2 eq., 0.2305529138
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Component Name	XACS
Contact Operation	slow-break
Electrical Circuit Type	control circuit
Mounting Of Block	base mounting
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	contact block
Returnability	No
Software Version	EIME v5.9.4
Total Lifecycle Carbon Footprint	0.3 kg CO2 eq.
Vibration Resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP0709005EN
Pep Verification Date	2022-11-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Energy Model - End Of Life [C1-c4]	Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
[Ithe] Conventional Enclosed Thermal Current	10 A
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Short-circuit Protection	10 A fuse protection cartridge gG
Package Weight(Lbs)	51.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	UL 508, IEC 60947-5-1, CSA C22.2 No 14
Carbon Footprint Of The Distribution Phase [A4]	0.0097406061, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0002321417, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Block Type	single
Contacts Type And Composition	1 NC + 1 NO
Mechanical Durability	1000000 cycles
Operating Force	13 N
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony XAC
Shock Resistance	100 gn IEC 60068-2-27
Sustainable Packaging	No
Type Of Operator	spring return
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Czech Republic
Energy Model - Use [B6]	Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Recyclability Potential In %	32
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Connections - Terminals	screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable endscrew clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538908180
