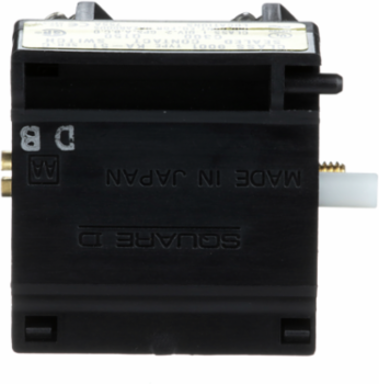

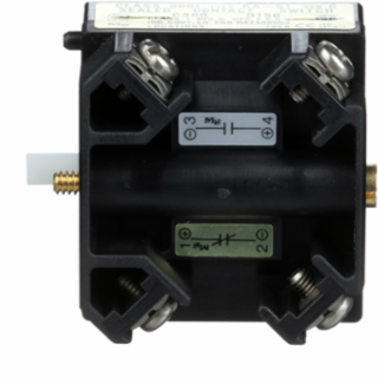

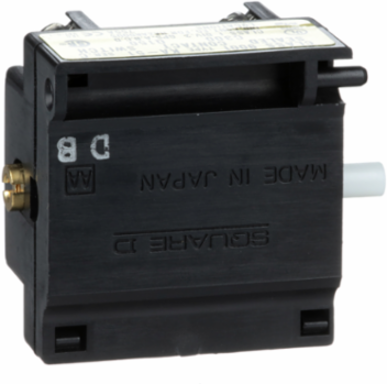

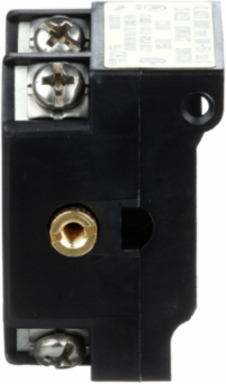

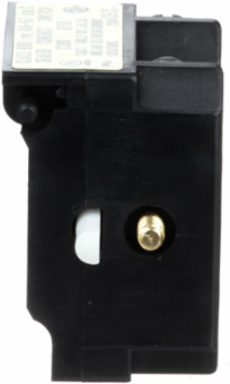

Square D 9001KA51 Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1 CO
Square D 9001KA51 Contact block with protected terminals, Harmony 9001K, Harmony 9001SK, 240V, screw clamp terminal, power reed, hermetically sealed, 1 CO
- MPN: 9001KA51
- UPC: 785901827498
- PPN: SCH-9001KA51
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$184.48/ EA
Description
This contact block is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It is compatible with Harmony 9001K or 9001SK push buttons and switches. It uses screw-clamp terminals and has 1 x NO + 1 x C/O contacts. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It features power reed contact operation. It weighs 45g. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Specifications
Environment
- Product Certifications
- NEMA || UL 508
- Standards
- UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || JIS C 852 || JIS C 4520 || CSA C22.2 No 14 || IEC 60947-1 || UL 60947-5-1
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Electrical Shock Protection Class
- class II IEC 61140
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ambient Air Temperature For Storage-40-70 °C
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Complementary
- [Us] Rated Supply Voltage
- 240 V
- Connections - Terminals
- screw-clamp terminals
- Positive Opening
- without
- Rated Breaking Capacity
- 3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.55 kA 125 V DC-13 || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13
- [Ui] Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Contact Operation
- power reed || hermetically sealed
- Shape Of Screw Head
- cross slotted
Contacts Usagehermetically sealed contacts
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
[Ith] Conventional Free Air Thermal Current10 A
Net Weight0.045 kg
Connections - Terminalsscrew clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
Contacts Type And Composition1 C/O
[Ie] Rated Operational Current3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Tightening Torque0.8-0.8 N.m IEC 60947-1
Specifications
- Range Of Product
- Harmony 9001K || Harmony 9001SK
- Device Short Name
- 9001K
Product Or Component Typecontact block
