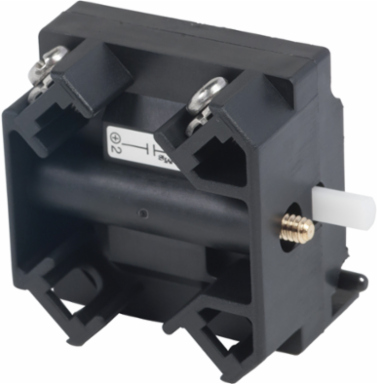

Schneider Electric 9001KA43 Harmony 9001K Contact Block, 120V, 1 NC, Screw Clamp Terminals
- MPN: 9001KA43
- UPC: 785901498568
- PPN: SCH-9001KA43
CAD
$55.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The 9001K, 9001SK and 9001KX push button lines have a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Hermetically sealed logic reed contact block are for low energy level circuits. This hermetically sealed logic reed contact blocks will work on 9001K, 9001SK and 9001KX operators. There are some restrictions on how they can be mounted to ensure proper operation. Contact block has one normally closed contact. Contact block has pressure wire connectors. Terminals will accept one or two solid or stranded wire from 18AWG to 14 AWG. Terminals should be tightened to 5 to 8 lb-in. Contact block is UL Listed and CSA certified. "This product is compatible with Harmony 9001K pushbuttons and switches." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of Ø 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
Complementary Attributes
| Rated Breaking Capacity | 3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13 |
|---|
Important Information Attributes
| Contact Operation | logic reed, hermetically sealed |
|---|---|
| Certificate Agency | UL 508, NEMA |
| [Ie] Rated Operational Current | 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Compatibility Code | 9001K |
| Contacts Usage | hermetically sealed contacts |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Shape Of Screw Head | cross slotted |
| Sustainable Packaging | No |
| Vibration Resistance | 7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6 |
| Pep Code | ENVPEP2312033EN |
| [Ui] Rated Insulation Voltage | 250 V 3)IEC 60947-1 |
| [Us] Rated Supply Voltage | 120 V |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509035 |
| Range Of Product | Harmony 9001K, Harmony 9001SK |
|---|---|
| [Icm] Rated Short-circuit Making Capacity | 12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA, 0.55 kA 125 V DC-13, 0.1 kA 600 V DC-130.27 kA 250 V DC-13 |
| Connections - Terminals | screw-clamp terminals, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Contacts Type And Composition | 1 NC |
| Device Short Name | 9001K |
| Positive Opening | without |
| Product Or Component Type | contact block |
| Returnability | No |
| Shock Resistance | 50 gn IEC 60068-2-27 |
| Tightening Torque | 0.8-0.8 N.m IEC 60947-1 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| [Ith] Conventional Free Air Thermal Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 2.5 kV IEC 60947-1 |
| Short-circuit Protection | 10 A cartridge fuse IEC 60947-5-1 |
| Package Weight(Lbs) | 40.823 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Environmental Disclosure | ENVPEP2312033EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2312033EN |
General Attributes
| Range Of Product | Harmony 9001K, Harmony 9001SK |
|---|
| Product Or Component Type | contact block |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
