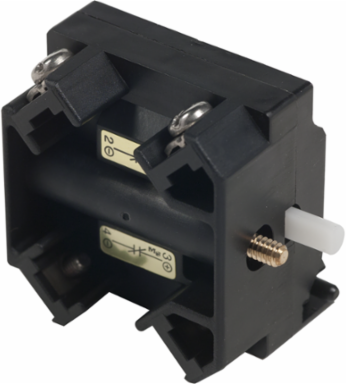

Schneider Electric 9001KA41 Harmony 9001K Contact Block, 120V, Screw Clamp, Hermetically Sealed, 1 CO

MPN: 9001KA41
UPC: 785901498544
PPN: SCH-9001KA41
UNSPSC: 39121522

$110.88

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony 9001K, hermetically sealed contact block uses screw-clamp terminals and has 1 x NO + 1 x NC contact. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on 9001K complete push button units and selector switches and connects to control circuits with simple screw-clamp connections. Its clear color of cover allows users to identify it visually at a distance. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It is compatible with Harmony 9001K push buttons and switches. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Features

Improved security thanks to finger-safe contact blocks and light modules
Robustness to withstand the harshest environments
Easy, secure mounting system
Automatic self-grounding operators without additional wiring
A large metal set of accessories to customize your product
Single screw Contact Block Fastening

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Weight	47 g

Complementary Attributes

Icm Rated Short Circuit Making Capacity	12 kA 600 V AC-15, 7200 VA15 kA 480 V AC-15, 7200 VA30 kA 240 V AC-15, 7200 VA60 kA 120 V AC-15, 7200 VA, 0.55 kA 125 V DC-13, 0.1 kA 600 V DC-130.27 kA 250 V DC-13
Rated Breaking Capacity	3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13
Uimp Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1

Ie Rated Operational Current	3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
Ui Rated Insulation Voltage	250 V 3)IEC 60947-1
Us Rated Supply Voltage	120 V

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Contact Operation	logic reed, hermetically sealed
Connections Terminals	screw-clamp terminals, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² IEC 60947-1
Carbon Footprint Of The Distribution Phase A4	0.006145963409066966, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0003464799662885837, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contacts Type And Composition	1 C/O
Device Short Name	9001K
Positive Opening	without
Product Or Component Type	contact block
Returnability	No
Shock Resistance	50 gn IEC 60068-2-27
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	0.5 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Customs Code	8536509035
Short Circuit Protection	10 A cartridge fuse IEC 60947-5-1
Functional Unit Description	Contact blocks are an important electrical component used in a variety of industrial applications. It provide a way to control, monitor and switch electrical circuits on and off. This contact block consumes 0.135 W with 35% utilisation rate and the product has a life of 10 years and adhering to standards IEC 60947-1 & IEC 60947-5-1.
Functional Unit Unit	Unit

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Range Of Product	Harmony 9001K, Harmony 9001SK
Certificate Agency	UL 508, NEMA
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.13269326122835973
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.4 kg CO2 eq., 0.35521087193173434
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Compatibility Code	9001K
Contacts Usage	hermetically sealed contacts
Electrical Shock Protection Class	class II conforming to IEC 61140
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Shape Of Screw Head	cross slotted
Software Version	v5.9.4
Tightening Torque	0.8-0.8 N.m IEC 60947-1
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	0.4943965765354496
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2312033EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2312033EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-02-23
Psr Version	PSR-0005-ed2-2016 03 29
