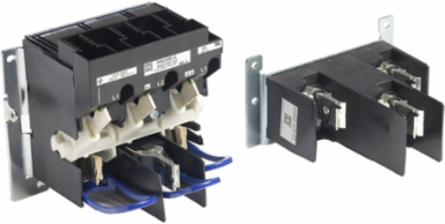

Square D 9422TEF10C Flange-Mounted Disconnect Switch, 100A, 600V, Variable Depth 6.63-18 Inch
Square D 9422TEF10C Flange-Mounted Disconnect Switch, 100A, 600V, Variable Depth 6.63-18 Inch
- MPN: 9422TEF10C
- UPC: 785901712152
- PPN: SCH-9422TEF10C
- UNSPSC: 39122233
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1479.95/ EA
Description
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 100 Amps up to 250 V and 100 Amps up to 600 V. This 100 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 25 HP at 208 VAC, 30 HP at 240 VAC, 60 HP at 480 VAC and 75 HP at 600 VAC. Switch is also rated for 20 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Disconnect switch lugs are rated for 10 to 0 AWG with copper wire and 6 to 0 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
Features
- Used with all disconnect switch and circuit breaker installations
- Designed for variable depth, flange mounting applications
- Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
- Two mounting methods offered for flexibility
- Disconnect switches were designed for control panel installations
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL Recognized
Complementary Attributes
- Maximum Horse Power Rating
- 25 hp 200 V AC, 30 hp 230 V AC, 60 hp 460 V AC, 75 hp 575 V AC, 20 hp 250 V DC
Line Rated Current100 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- J, R, H, K
- Local Publishable Date
- 2025-11-13
- Serviceability
- No
- Legacy WEEE Scope
- In
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Associated Fuse Rating
- 100 A 250/600 V
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
- Sustainable Packaging
- No
- Medium Desc
- Operating mechanism, flange mounted, variable depth, 100A, 600V, H, K, J, R fuseholder, cable operated switch mechanism
- Product Kit Identifier
- N
Persona Type NamesEnd User, Contractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeYes
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Disconnector Device Typefusible disconnect switch
Package Weight Lbs2.667 kg
Product Mountingflange cable variable depth
Provided Equipmentordered separately
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stocking FlagY
Global Commercial StatusCommercialised
Environment Attributes Main
- EU ROHS Directive
- Compliant , Compliant
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
Provided Equipmentordered separately
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
