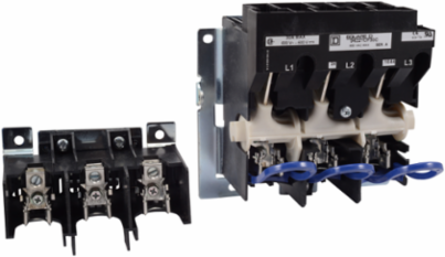

Square D 9422TCF30C Flange-Mounted Disconnect Switch, 30A, Variable Depth 6.63-18 Inch, UL/CSA Certified
- MPN: 9422TCF30C
- UPC: 785901866930
- PPN: SCH-9422TCF30C
- UNSPSC: 39122233
CAD
$736.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
9422TCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 30 Amps up to 250 V. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
Documentation & Downloads
Specifications
Key Specifications
| Disconnector Device Type | fusible disconnect switch |
|---|---|
| Product Or Component Type | Disconnect Switch |
| Range Of Product | 9422T |
|---|
Complementary
| Associated Fuse Rating | 30 A 250 V |
|---|---|
| Fuse Type | H || K || J || R |
| Maximum Horse Power Rating | 7.5 hp 200 V AC || 7.5 hp 230 V AC || 15 hp 460 V AC || 20 hp 575 V AC || 5 hp 250 V DC |
| Provided Equipment | ordered separately |
|---|---|
| Line Rated Current | 30 A |
| Product Mounting | flange cable variable depth |
Environment
| Product Certifications | UL Recognized || CSA |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
