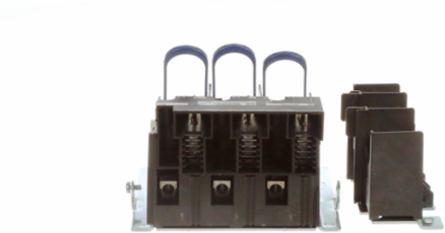

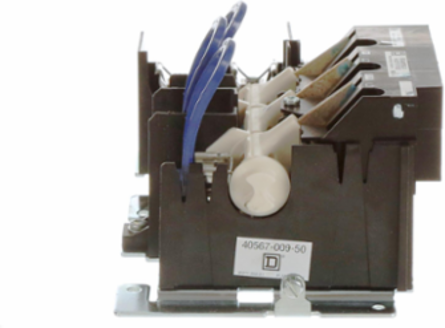

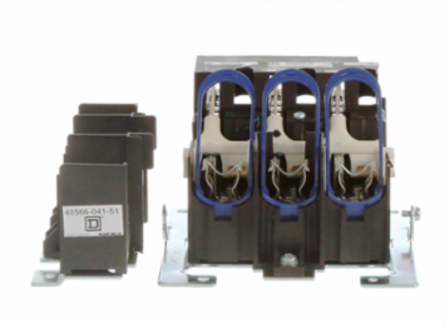

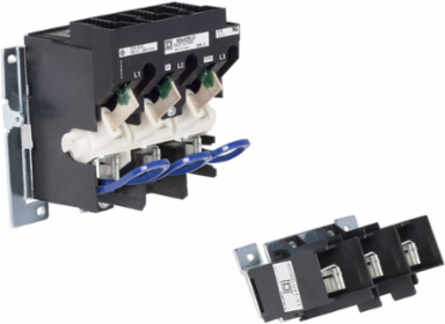

Square D 9422TCF33C Flange-Mounted Disconnect Switch, 30A, 600V, Variable Depth 6.63-18 Inch
Square D 9422TCF33C Flange-Mounted Disconnect Switch, 30A, 600V, Variable Depth 6.63-18 Inch
- MPN: 9422TCF33C
- UPC: 785901696995
- PPN: SCH-9422TCF33C
- UNSPSC: 39122233
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$750.05/ EA
Description
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 250 V and 30 Amps up to 600 V. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC and 15 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles or cable operator. Handle is to be ordered seoparately. Disconnect switch lugs are rated for 14 to 2 AWG with copper wire and 10 to 2 with aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
Features
- Used with all disconnect switch and circuit breaker installations
- Designed for variable depth, flange mounting applications
- Kit contains all parts necessary for conveniently mounting the handle to the flange of the enclosure
- Two mounting methods offered for flexibility
- Disconnect switches were designed for control panel installations
Specifications
Conformance Attributes
- Product Certifications
- CSA, UL Recognized
Complementary Attributes
- Maximum Horse Power Rating
- 7.5 hp 200 V AC, 7.5 hp 230 V AC, 15 hp 460 V AC, 20 hp 575 V AC, 5 hp 250 V DC
Line Rated Current30 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 60 A 250 V, 30 A 600 V
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
- Sustainable Packaging
- No
- Medium Desc
- Operating mechanism, flange mounted, variable depth, 30A, 600V, H, K, J, R fuseholder, cable operated switch mechanism
- Product Kit Identifier
- N
Persona Type NamesEnd User, Contractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Fuse TypeH, R, K, J
Local Publishable Date2025-11-13
ServiceabilityNo
Legacy WEEE ScopeIn
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Disconnector Device Typefusible disconnect switch
Package Weight Lbs2.309 kg
Product Mountingflange cable variable depth
Provided Equipmentordered separately
ReturnabilityNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Stocking FlagY
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
EU ROHS DirectiveCompliant , Compliant
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Disconnect Switch
- Range Of Product
- 9422T
Provided Equipmentordered separately
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
