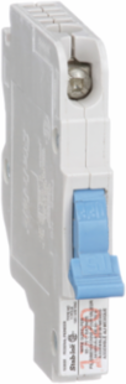

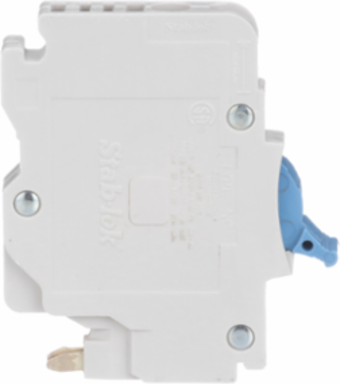

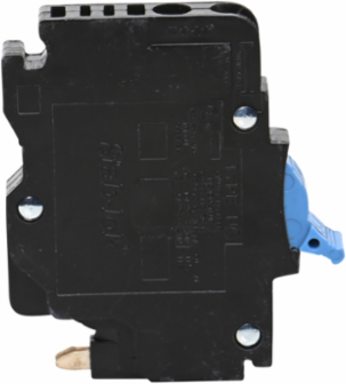

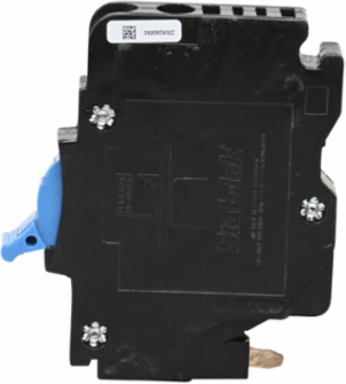

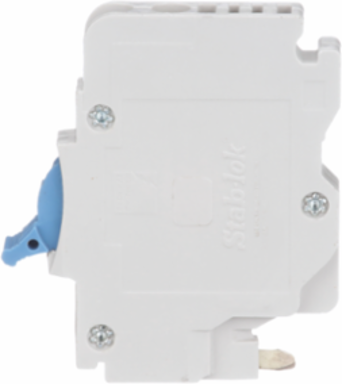

Schneider Electric NC015 Stab-Lok Miniature Circuit Breaker 15A 1-Pole 120V AC 10kA Plug-In
- MPN: NC015
- UPC: 785901388722
- PPN: SCH-NC015
CAD
$33.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Stab-Lok circuit breakers are one, two, and three pole thermal magnetic circuit breakers that provide arc fault circuit interrupters for Federal Pioneer panels. They have easy to read color coded handles to differentiate ampere ratings. This breaker is a one pole 15A, 120VAC moulded case breaker with plug in mounting. This circuit breaker meets CSA standards.
Features
- The Schneider NC015 is an authentic, CSA-certified Federal Pioneer (FPE) Stab-lok circuit breaker, engineered specifically for the Canadian residential market. As the OEM replacement for aging panels, it ensures perfect mechanical and electrical compatibility, eliminating the significant safety risks and fitment issues associated with non-certified, aftermarket "knock-off" breakers.
- Rated at 15 Amps and 120V, this single-pole breaker is the standard protection for general-purpose branch circuits. It is the primary choice for residential lighting, bedroom outlets, and living area circuits, providing the specific amperage required to protect standard 14 AWG household wiring from overheating.
- This breaker utilizes a dual-action thermal-magnetic trip mechanism. The thermal element monitors for slow, sustained overloads caused by plugging in too many appliances, while the magnetic element provides instantaneous protection against high-energy short circuits. This two-stage defense reacts in milliseconds to cut power before wire insulation can melt or ignite.
- Following the classic Stab-lok color-coding system, the NC015 features a high-visibility blue handle. This allows homeowners and electricians to immediately identify the 15-Amp circuit rating at a glance without needing to read small text, which is critical for fast troubleshooting and safety verification in dimly lit utility rooms or basements.
- Designed for a plug-on connection, the NC015 features the iconic "stab" clip that snaps directly onto the panel's bus bar. This design provides a high-pressure, secure electrical contact that resists loosening over time due to thermal expansion, while the heavy-duty screw terminal ensures a rock-solid connection for your copper branch wiring.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Stab-lok
- [In] Rated Current
- 15 A
- Breaking Capacity
- 10 kA
Poles Description1P
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120 V AC
Complementary
- Mounting Mode
- plug-in
- Awg Gauge
- AWG 14...AWG 6 copper
Electrical Connectionscrew connector
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Product Certifications
- CSA
