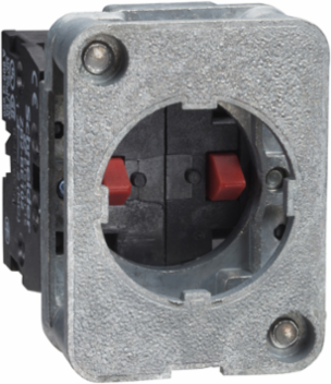

Schneider Electric XACS411 Harmony XAC Single Contact Block, Spring Return, 1 NO, 40mm Horizontal Fixing

MPN: XACS411
PPN: SCH-XACS411
UNSPSC: 39121522

$51.94

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Engineered for seamless integration into automation systems, this single contact block from Schneider Electric offers reliable performance with a spring return mechanism. Designed specifically for horizontal fixing, it features one normally open (NO) contact, making it an ideal choice for various control applications. With its durable construction and thoughtful design, this contact block enhances the functionality of pilot devices, ensuring dependable operation in demanding environments.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia

Weight	58 g

Complementary Attributes

Maximum Resistance Across Terminals	25 MOhm
Rated Operational Power In W	42 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C45 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C60 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Uimp Rated Impulse Withstand Voltage	6 kV IEC 60947-1

Rated Operational Power In Va	140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive385 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive455 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive525 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive
Ui Rated Insulation Voltage	500 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Terminal Identifier	(13-14)NO, (11-12)NC, (13-14)NO, (11-12)NC
Certificate Agency	CSA C22.2 No 14, IEC 60947-5-1
Carbon Footprint Of The Distribution Phase A4	0.007584615384615385, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.009103341103341104, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Block Type	single
Contact Operation	slow-break
Electrical Circuit Type	control circuit
Mechanical Durability	1000000 cycles
Mounting Of Block	front mounting
Product Or Component Type	contact block
Returnability	Yes
Software Version	v5.9.4
Total Lifecycle Carbon Footprint	0.4 kg CO2 eq.
Vertical Fixing Centres	30 mm
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Customs Code	8536509065
Short Circuit Protection	10 A fuse protection cartridge gG
Functional Unit Description	XAC is a complete ready to use pendant station for control of single-speed motors and also ideal for hoists, travelling cranes in Industrial applications. Product has life span of 10 years with power consumption of 0.000012 W with use rate of 15% active and adhering to international standards IEC 60947-5-1 & UL 508.
Functional Unit Unit	Unit

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Connections Terminals	screw clamp terminals, 1 x 2.5 mm² with or without cable end, screw clamp terminals, 2 x 1.5 mm² with or without cable end
Terminals Description Iso N°1	(13-14)NO, (13-14)NO
Carbon Footprint Of The End Of Life Phase C1 To C4	0.1 kg CO2 eq., 0.1342021756021756
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.3 kg CO2 eq., 0.28616938616938614
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Component Name	XACS
Contact Code Designation	A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix AQ300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
Contacts Type And Composition	1 NO
Horizontal Fixing Centres	40 mm
Mechanical Interlocking	without mechanical interlock
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	Harmony XAC
Shock Resistance	100 gn IEC 60068-2-27
Sustainable Packaging	No
Type Of Operator	spring return
Vibration Resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Database Version	2022-01
Nbr. Of Units In Pkg.	1
Ithe Conventional Enclosed Thermal Current	10 A
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Product Compatibility	ZA2B... head, XACA
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP0709005EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP0709005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	0.4370595182595183
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2024-06-17
Psr Version	PSR-0005-ed2-2016 03 29
