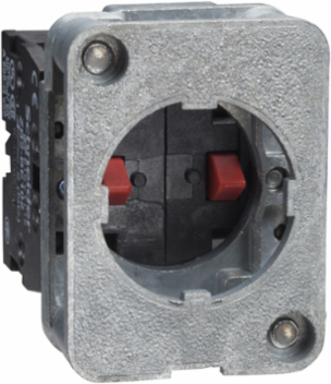

Schneider Electric XACS413 Harmony XAC Single Contact Block, Spring Return, 40mm Horizontal, 30mm Vertical
- MPN: XACS413
- PPN: SCH-XACS413
CAD
$81.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Schneider Electric's XACS413 Harmony XAC Single Contact Block is designed for efficient control within automation applications. This component features a spring return mechanism and can be mounted horizontally, offering versatile installation options in various configurations. With its dimensions optimized for both 40mm horizontal and 30mm vertical orientations, it delivers a reliable solution for pilot devices, enhancing operational efficiency in industrial environments. Tailored for seamless integration in control circuits, this contact block exemplifies precision and durability, making it a valuable addition to any automation system.
Documentation & Downloads
Specifications
Additional
- Contacts Type And Composition
- 2 NO
- Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- Rated Operational Power AC-15
- 140 VA (24 V), 385 VA (48 V), 455 VA (230 V), 525 VA (127 V) inductive, 1000000 cycles, 60 cyc/mn, 50/60 Hz, IEC 60947-5-1
- Mechanical Durability
- 1000000 cycles
- Ambient Air Temperature For Storage
- -40 to 70 °C
- Shock Resistance
- 100 gn IEC 60068-2-27
- Vertical Fixing Centres
- 30 mm
- Terminal Type
- Screw clamp terminals
- Mechanical Interlocking
- Without mechanical interlock
- Product Compatibility
- ZA2B... head, XACA
- Component Name
- XACS
- Product Or Component Type
- Contact block
- Net Weight
- 0.07 kg
- Terminals Description Iso N°1
- (23-24)NO, (13-14)NO
- China Rohs Regulation
- Yes
- Reach Free Of Svhc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Pro-active compliance (out of EU RoHS legal scope)
- Warranty
- 18 months
Rated Insulation Voltage500 V IEC 60947-1
Conventional Enclosed Thermal Current10 A
Rated Operational Power DC-1342 W (120 V), 45 W (48 V), 60 W (24 V) inductive, 1000000 cycles, 60 cyc/mn, IEC 60947-5-1 appendix C
Contact OperationSlow-break
Ambient Air Temperature For Operation-25 to 70 °C
Vibration Resistance15 gn (10-500 Hz) IEC 60068-2-6
Horizontal Fixing Centres40 mm
MountingFront mounting
Terminal Wire Size1 x 2.5 mm² or 2 x 1.5 mm² with or without cable end
StandardsCSA C22.2 No 14, IEC 60947-5-1, EN 60947-5-1
Range Of ProductHarmony XAC
Contact Block TypeSingle
Contact Code DesignationA300 AC-15 Ue=240 V Ie=3 A, Q300 DC-13 Ue=250 V Ie=0.27 A IEC 60947-5-1 appendix A
Terminal Identifier(13-14)NO, (11-12)NC
Maximum Resistance Across Terminals25 MΩ
Rohs Exemption InformationYes
Reach RegulationFree of SVHC above threshold
Mercury FreeYes
Country of OriginCZ
