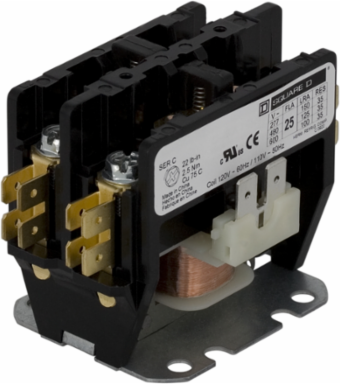

Square D 8910DP21V02 Contactor, Definite Purpose, 25A, 1 pole, 110/120 VAC 50/60 Hz coil, open
- MPN: 8910DP21V02
- UPC: 785901073277
- PPN: SCH-8910DP21V02
CAD
$33.80
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 25 ampere and a resistive rating of 35 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
Complementary Attributes
- Line Rated Current
- 25 A
- Maximum Horse Power Rating
- 2-2 hp 115 V AC, 1 phase3-3 hp 230 V AC, 1 phase
Locked Rotor Rated Current125 A 460 V AC100 A 575 V AC150 A 277 V AC
Important Information Attributes
- Electrical Connection
- quick connect terminals, binder head
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- Product Kit Identifier
- N
- Phase
- 1 phase
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- DP
- Sustainable Packaging
- No
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 217.724 g
- Customs Code
- 8536490065
Certificate AgencyUL Recognized, CSA
Local Publishable Date2026-06-27
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1905
China Rohs In ScopeNo
Number Of Poles1P
Pole Contact Composition1 NO
Product Or Component TypeDefinite Purpose Contactor
ReturnabilityYes
[Uc] Control Circuit Voltage120 V AC 60 Hz110 V AC 50 Hz
Nbr. Of Units In Pkg.1
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Eu Rohs Directive
- Compliant By Exemption
Mercury FreeYes
General Attributes
- Phase
- 1 phase
- Range Of Product
- DP
Product Or Component TypeDefinite Purpose Contactor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
