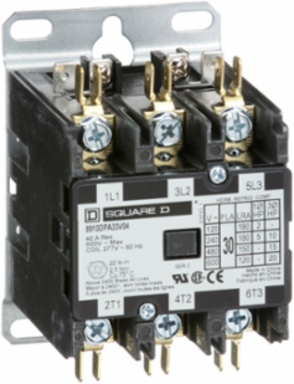

Square D 8910DPA33V04 Definite Purpose Contactor 30A 3 Pole 20HP at 575VAC 277VAC Coil
- MPN: 8910DPA33V04
- UPC: 785901024422
- PPN: SCH-8910DPA33V04
CAD
$158.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

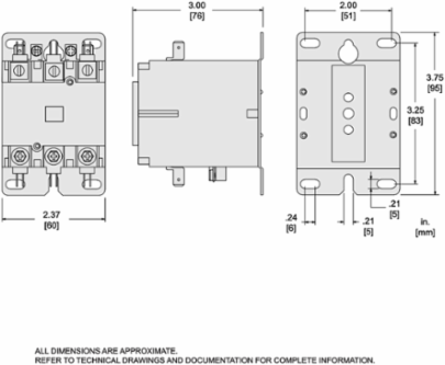

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 277 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Mexico, United States
Complementary Attributes
- Locked Rotor Rated Current
- 150 A 460 V AC, 120 A 575 V AC, 180 A 277 V AC
- Line Rated Current
- 30 A
Maximum Horse Power Rating2-2 hp 115 V AC, 1 phase, 5-5 hp 230 V AC, 1 phase, 10-10 hp 230 V AC, 3 phase, 15-15 hp 460 V AC, 3 phase, 20-20 hp 575 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- quick connect terminals, binder head
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 95.66
- Stock Policy
- 1
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Phase
- 3 phase
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- DPA
- Sustainable Packaging
- Yes
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 444.52 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyUL Recognized, CSA
Local Publishable Date2026-03-25
Future Imap75.33
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1905
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN

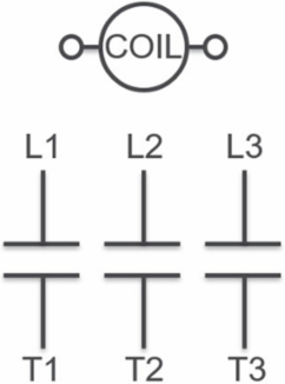

Number Of Poles3P
Pole Contact Composition3 NO
Product Or Component TypeDefinite Purpose Contactor
ReturnabilityYes
[Uc] Control Circuit Voltage277 V AC 60 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
Take BackNo
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Phase
- 3 phase
- Range Of Product
- DPA
Product Or Component TypeDefinite Purpose Contactor
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
