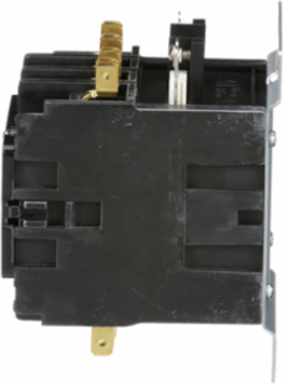

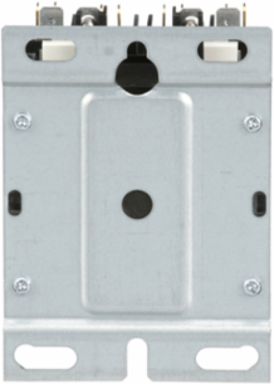

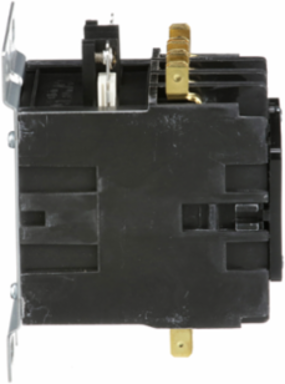

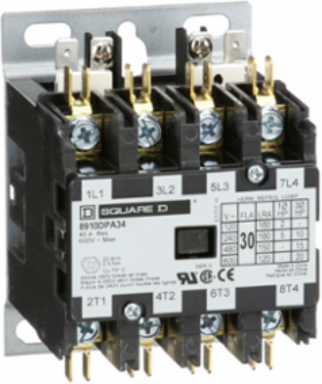

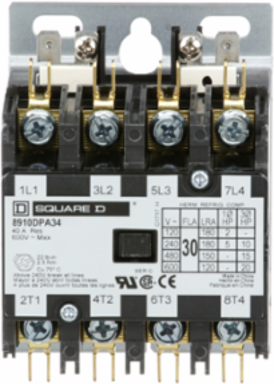

Square D 8910DPA34V14 Definite Purpose Contactor 30A 4 Pole 20HP 575V 3 Phase 24V AC
Square D 8910DPA34V14 Definite Purpose Contactor 30A 4 Pole 20HP 575V 3 Phase 24V AC
- MPN: 8910DPA34V14
- UPC: 785901073512
- PPN: SCH-8910DPA34V14
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$166.26/ EA
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This four pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.78 inches by 2.75 inches and 3.04 tall. These contactors are UL component recognized and CSA certified.
Specifications
Environment
- Product Certifications
- UL recognized || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Motor Power Hp
- 2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase || 10-10 hp 230 V AC, 3 phases || 15-15 hp 460 V AC, 3 phases || 20-20 hp 575 V AC, 3 phases
- Network Number Of Phases
- 3 phases
Locked Rotor Rated Current150 A 460 V AC || 120 A 575 V AC || 180 A 277 V AC
Electrical Connectionquick connect terminals || binder head
[Ue] Rated Operational Voltage600 V AC
Specifications
- Range Of Product
- DPA
- [In] Rated Current
- 30 A
- Pole Contact Composition
- 4 NO
Poles Description4P
Product Or Component TypeDefinite Purpose Contactor
