Schneider Electric 8910DPA43V02 Definite Purpose Contactor 40A 3-Pole 25HP 575VAC

MPN: 8910DPA43V02
UPC: 785901073444
PPN: SCH-8910DPA43V02

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$155.38

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

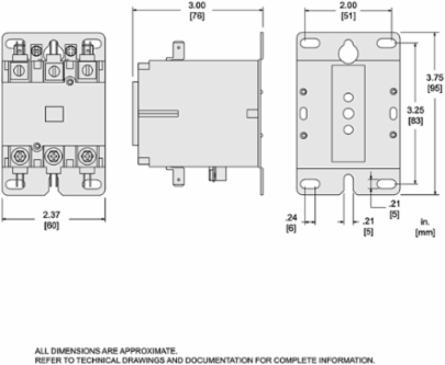

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.

Features

Specifically engineered for "definite purpose" applications like air conditioning units, refrigeration systems, and heating equipment, the 8910DPA43V02 is built to handle high-cycle motor loads. Its robust construction prevents premature contact wear, ensuring your critical cooling or heating systems remain operational through peak seasonal demands without frequent maintenance interruptions.
Featuring three independent poles rated for 40 Amps inductive load (50 Amps resistive), this contactor is the ideal solution for managing 3-phase machinery and large heating elements. It provides a reliable bridge between your control signals and high-power hardware, allowing for safe, automated switching of heavy electrical loads up to 600V AC in commercial and industrial environments.
Equipped with a common 120V AC / 110V AC @ 50/60Hz operating coil, this unit integrates seamlessly with most standard thermostats, relays, and PLC outputs. This high-compatibility voltage rating simplifies the wiring process for panel builders and technicians, eliminating the need for additional step-down transformers and reducing the overall footprint of your motor control center.

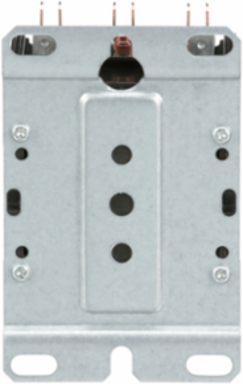

Designed for maximum installation flexibility, this contactor features a compact frame with industry-standard mounting holes and high-quality binder head screws for secure wire terminations. Whether you are performing a field repair or a new installation, the straightforward design reduces labor time and ensures a tight, vibration-resistant connection that prevents hazardous electrical arcing.
This Schneider Electric (Square D) component is fully UL Recognized and CSA Certified, meeting the rigorous safety requirements for industrial control equipment. Utilizing a globally trusted brand ensures that your electrical panels remain code-compliant, protecting your facility's equipment warranty and ensuring maximum safety for onsite operators.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, Mexico, United States
Width	2.37 in

Height	2.31 in

Complementary Attributes

Line Rated Current	40 A
Maximum Horse Power Rating	3-3 hp 115 V AC, 1 phase7.5-7.5 hp 230 V AC, 1 phase10-10 hp 230 V AC, 3 phase20-20 hp 460 V AC, 3 phase25-25 hp 575 V AC, 3 phase

Locked Rotor Rated Current	240 A 277 V AC200 A 460 V AC160 A 575 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Connection	quick connect terminals, box lugs
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	PPIBS
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Phase	3 phase
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	DPA
Sustainable Packaging	Yes
Height Nominal	2.31 in
Width Nominal	2.37 in
[Uc] Control Circuit Voltage	120 V AC 60 Hz110 V AC 50 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490065

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Certificate Agency	UL Recognized, CSA
Local Publishable Date	2026-06-27
Stocking Flag	N
Device Type	LV equipment - LV contactor
Traceability	No
Average Life Duration	20 year(s)
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2541
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Number Of Poles	3P

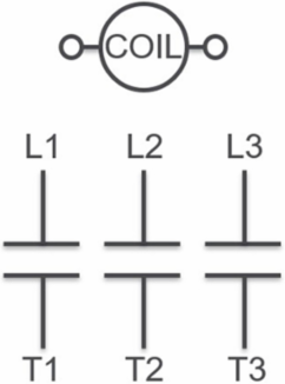

Pole Contact Composition	3 NO
Product Or Component Type	Definite Purpose Contactor
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Useful	2.31 in
Width Real	2.37 in
[Ue] Rated Operational Voltage	600 V AC
Package Weight(Lbs)	474.457 g
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level	0 %
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes

Take Back	No
Mercury Free	Yes
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
