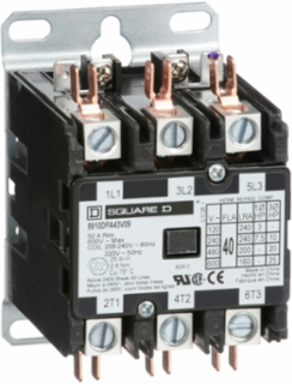

Square D 8910DPA43V09 Definite Purpose Contactor 40A 3-Pole 25HP 575VAC 3 Phases
- MPN: 8910DPA43V09
- UPC: 785901073437
- PPN: SCH-8910DPA43V09
CAD
$155.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
Features
- This Square D by Schneider Electric Type DPA definite purpose contactor is engineered specifically for heavy-duty heating, ventilation, air conditioning, and commercial refrigeration applications. With a robust 40 A inductive full-load rating and a 50 A resistive capacity at 600 V AC, it provides an ideal, highly stable switching mechanism for large-scale compressor motors, condenser fans, and resistive heating banks.
- Designed to align perfectly with common multi-phase commercial distribution layouts, this model features a 208-240 V AC control coil operating at 60 Hz (220 V AC at 50 Hz). This matching control circuit voltage eliminates the need for standalone buck-boost control transformers, allowing HVAC technicians to execute quick drop-in replacements on standard rooftop units and commercial chillers.

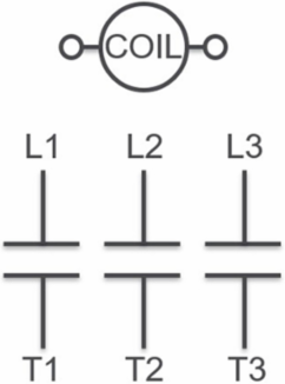

- Equipped with a standard 3-pole, 3 NO contact architecture, this electromechanical contactor can comfortably handle substantial multi-phase motor loads across various line voltages. It safely manages up to 10 hp at 230 V, 20 hp at 460 V, and 25 hp at 575 V AC in 3-phase systems, providing mechanical contractors with an incredibly reliable, high-horsepower rating for high-torque industrial fan and pump startups.
- Built with straight-through wiring logic, quick-connect spade terminals, and heavy-duty box lugs with binding head screws, this compact unit significantly lowers field installation and wiring times. The space-saving footprint features an exclusive integrated 35mm DIN rail track mounting option alongside traditional backpanel screw holes, allowing technicians to quickly secure the device inside tight control cabinets without modifying existing mounting plates.
- This genuine Square D component is fully UL component recognized, and CSA certified, facilitating swift compliance approvals from local building inspectors and safety auditors. Its construction adheres to stringent industry benchmarks for low-voltage switching devices, ensuring the replacement restores original equipment integrity without violating underlying system safety or environmental warranties.
Documentation & Downloads
Specifications
Additional
- Rated Current
- 40 A
- Locked Rotor Rated Current
- 240 A 277 V AC, 200 A 460 V AC, 160 A 575 V AC
- Number of Poles
- 3
- Pole Contact Composition
- 3 NO
- Control Circuit Voltage
- 208...240 V AC 60 Hz, 220 V AC 50 Hz
- Range Of Product
- DPA
- Product Certifications
- UL recognized, CSA Certified
- Mercury Free
- Yes
- EU RoHS Directive
- Compliant with Exemptions
- Warranty
- 18 months
Rated Operational Voltage600 V AC
Motor Power Hp3-3 hp 115 V AC, 1 phase; 7.5-7.5 hp 230 V AC, 1 phase; 10-10 hp 230 V AC, 3 phases; 20-20 hp 460 V AC, 3 phases; 25-25 hp 575 V AC, 3 phases
Phase3 phases
Electrical ConnectionQuick connect terminals, Box lugs

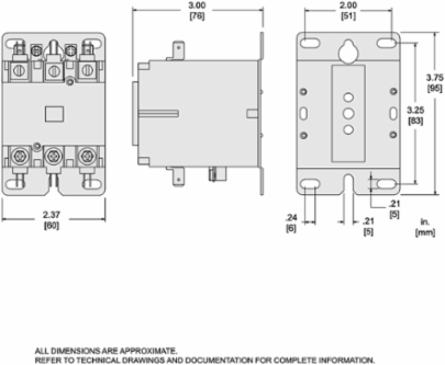

Dimensions (H x W x D)3.00 in x 2.37 in x 3.75 in
Product Or Component TypeDefinite Purpose Contactor
RoHS Exemption InformationYes
China RoHS RegulationProduct out of China RoHS scope
Reach RegulationContains Substances of Very High Concern above threshold
Country of OriginChina
