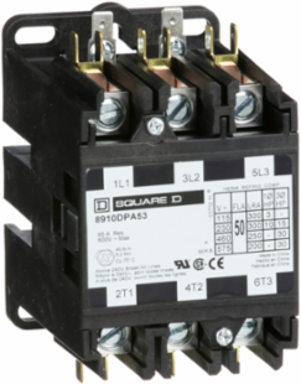

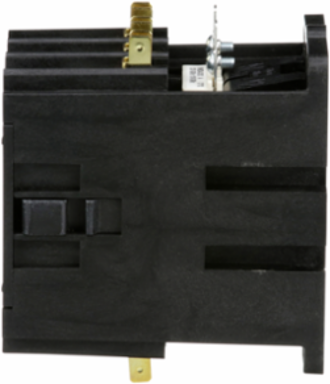

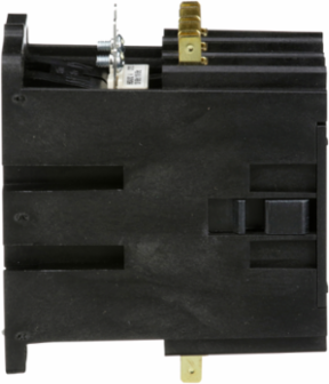

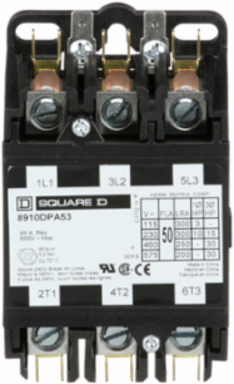

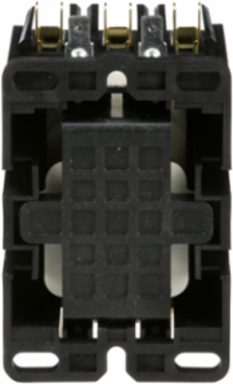

Square D 8910DPA53V02 Definite Purpose Contactor, 50A, 30HP at 575VAC, 3-Phase
- MPN: 8910DPA53V02
- UPC: 785901080756
- PPN: SCH-8910DPA53V02
CAD
$306.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 50 ampere and a resistive rating of 65 amperes. It also has a 3 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 15 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- DPA
- Pole Contact Composition
- 3 NO
- [In] Rated Current
- 50 A
Product Or Component TypeDefinite Purpose Contactor
Poles Description3P
Complementary
- [Uc] Control Circuit Voltage
- 120 V AC 60 Hz || 110 V AC 50 Hz
- Locked Rotor Rated Current
- 300 A 277 V AC || 250 A 460 V AC || 200 A 575 V AC
- Network Number Of Phases
- 3 phases
- Electrical Connection
- box lugs || quick connect terminals
- Depth
- 3.67 in || 93 mm
Height4.13 in || 105 mm
Motor Power Hp3-3 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 1 phase || 15-15 hp 230 V AC, 3 phases || 30-30 hp 460 V AC, 3 phases || 30-30 hp 575 V AC, 3 phases
Net Weight.68 kg || 1.5 lb(US)
Width2.56 in || 65 mm
[Ue] Rated Operational Voltage600 V AC
Environment
- Product Certifications
- UL recognized || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
