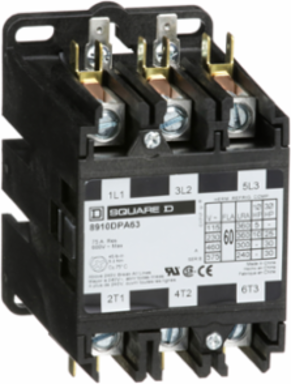

Square D 8910DPA63V14 Definite Purpose Contactor, 60A, 3 Pole, 30HP at 575VAC, 24VAC Coil
Square D 8910DPA63V14 Definite Purpose Contactor, 60A, 3 Pole, 30HP at 575VAC, 24VAC Coil
- MPN: 8910DPA63V14
- UPC: 785901080831
- PPN: SCH-8910DPA63V14
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$320.98/ EA
Description
8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified.
Specifications
Environment
- Product Certifications
- UL recognized || CSA
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- [Uc] Control Circuit Voltage
- 24 V AC 50/60 Hz
- Motor Power Hp
- 5-5 hp 115 V AC, 1 phase || 10-10 hp 230 V AC, 1 phase || 30-30 hp 460 V AC, 3 phases || 30-30 hp 575 V AC, 3 phases || 25-25 hp 230 V AC, 3 phases
- Network Number Of Phases
- 3 phases
Locked Rotor Rated Current360 A 277 V AC || 300 A 460 V AC || 240 A 575 V AC
Electrical Connectionbox lugs || quick connect terminals
[Ue] Rated Operational Voltage600 V AC
Specifications
- Range Of Product
- DPA
- [In] Rated Current
- 60 A
- Pole Contact Composition
- 3 NO
Poles Description3P
Product Or Component TypeDefinite Purpose Contactor
